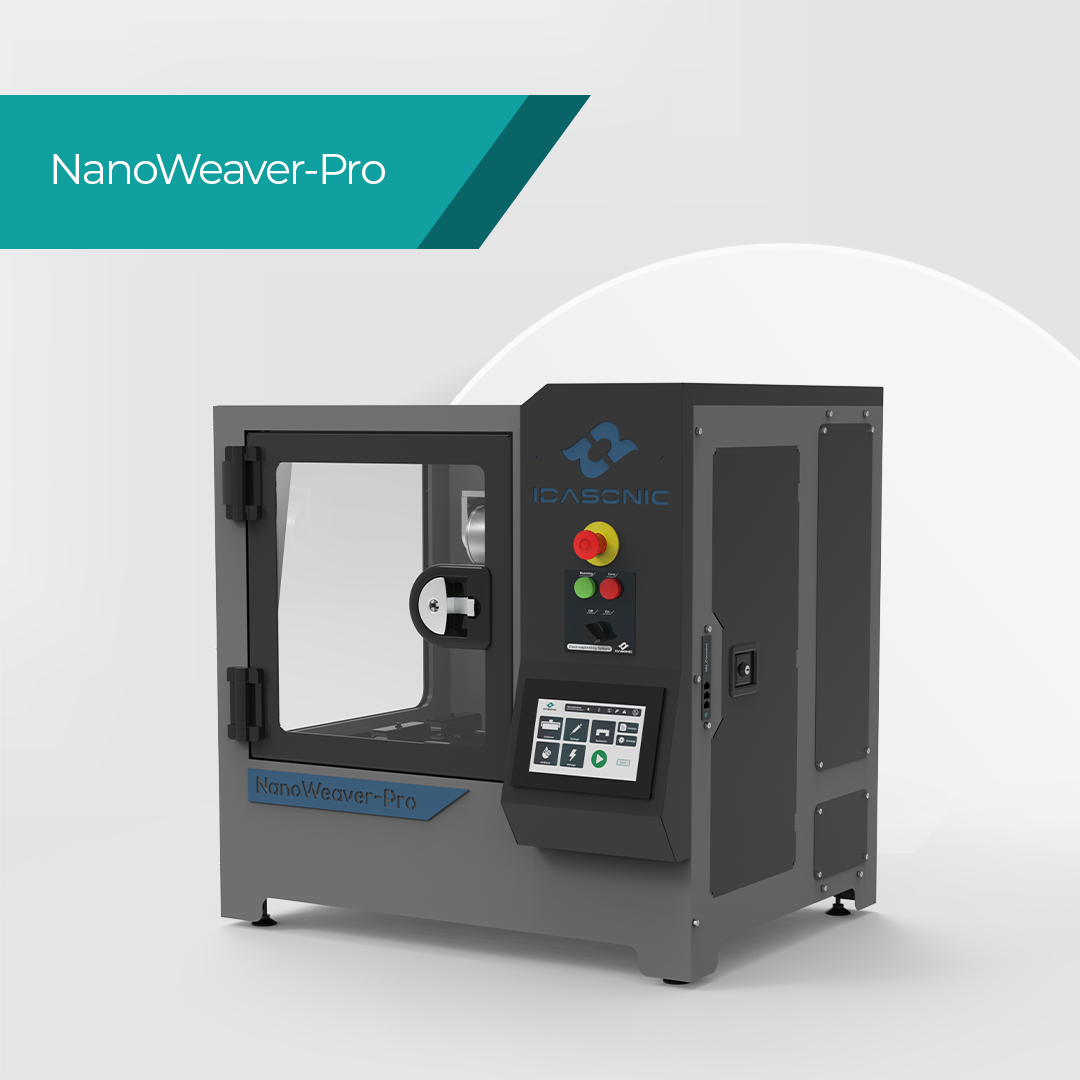

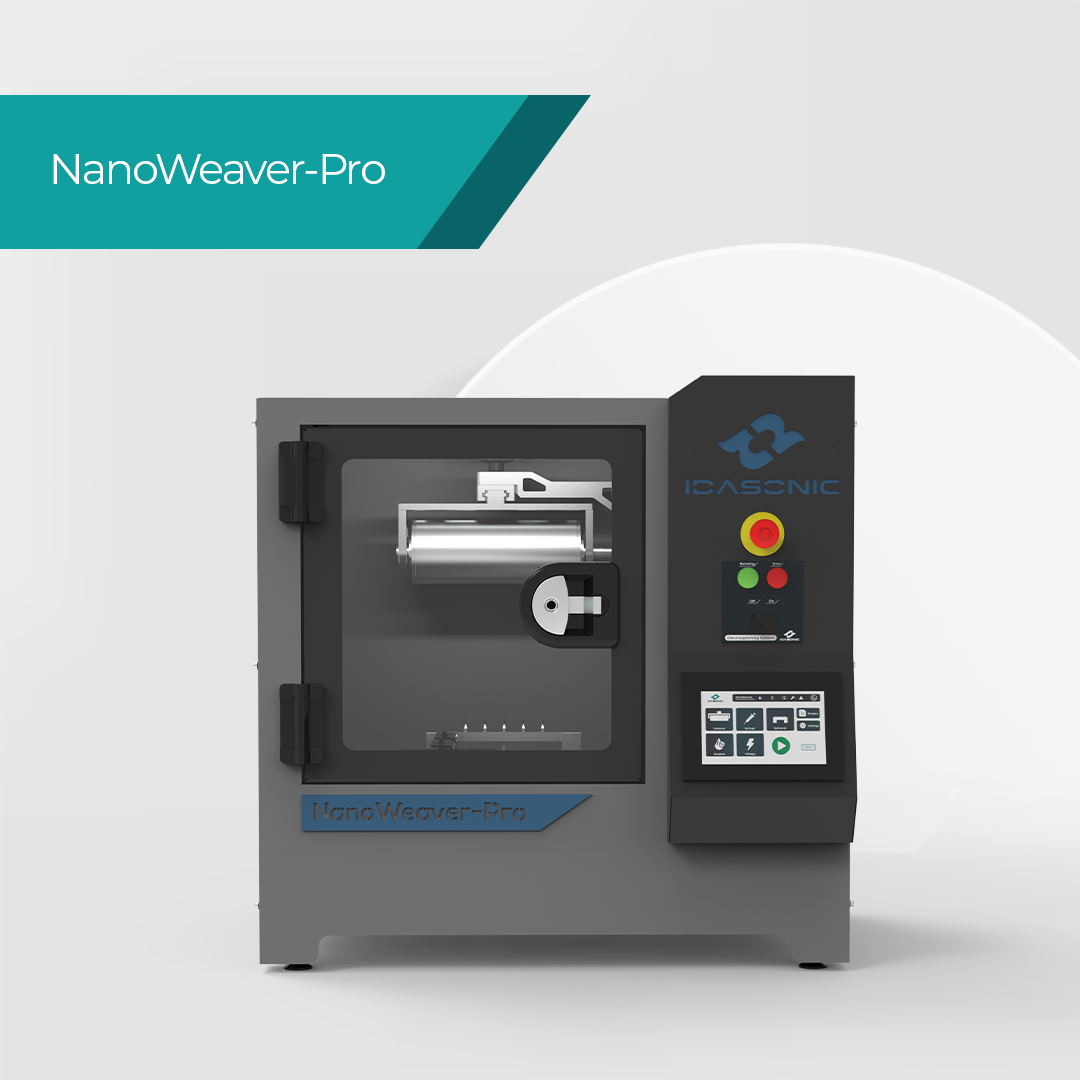

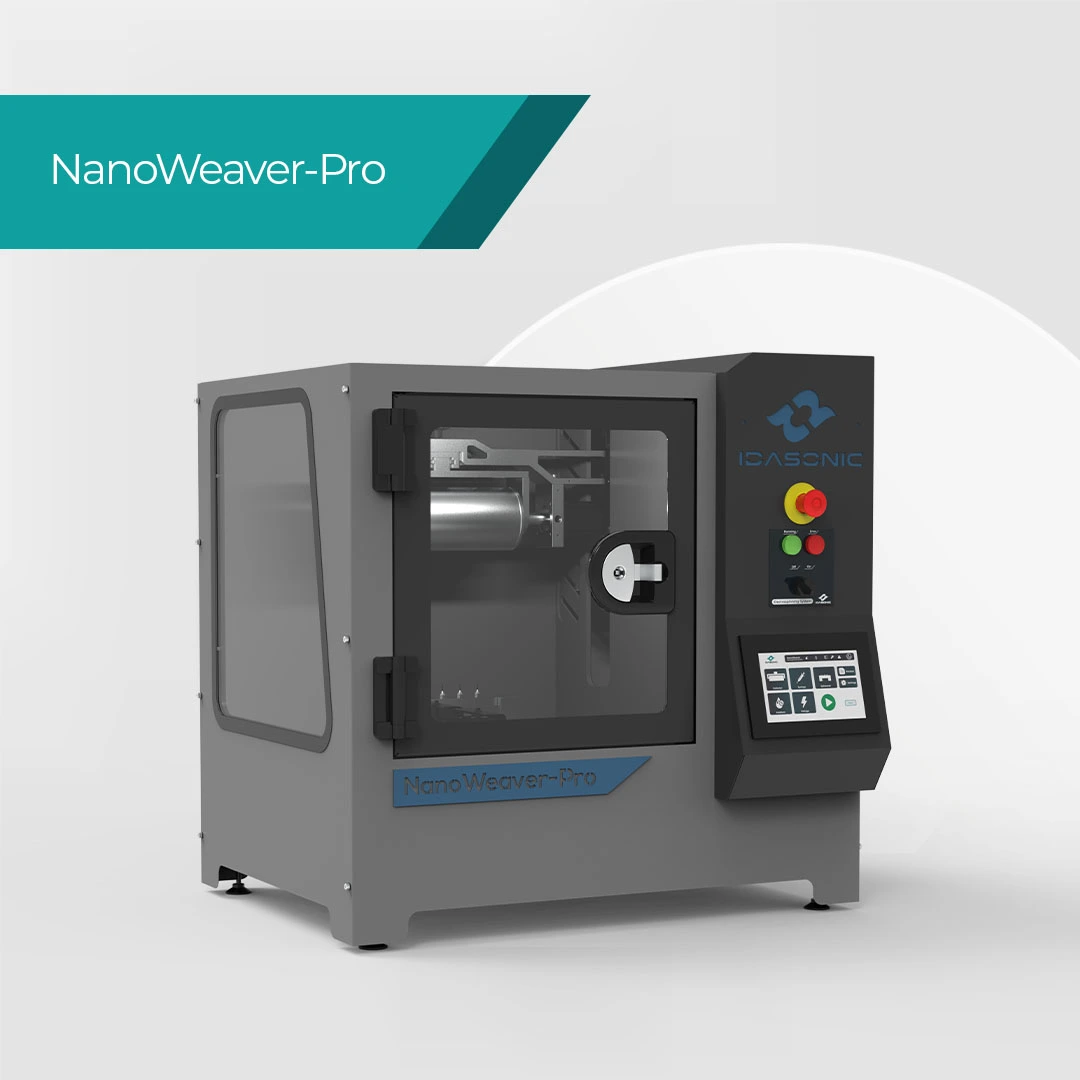

NanoWeaver®-Pro

NanoWeaver®-Pro has the appropriate design and features required for the homogeneous production of polymer-based nanofibers on large surfaces. The production of nanofibers used in the medical, biotechnology, environmental, textile, electronics and other industries requires the flexibility to adapt to ever-changing requirements. To address this need, our top-of-the-line lab-scale product, the NanoWeaver®-Pro, enables the successful production of nanofibers for a wide range of applications. Furthermore, its compact design and user-friendly interface allows users to focus on their work while increasing productivity in laboratory environments.

This innovative high-end instrument is equipped with features such as collectors of various geometries, multiple spinnerets and two syringe pumps, each with two channels. Multiple spinneret modules and 4 different syringe capacities allow users to easily produce nanofiber structures with the desired composition and homogeneity on very large surfaces. NanoWeaver®-Pro is designed to allow all experimental parameters such as spinneret-collector distance, spinneret movement speed, applied voltage, solution delivery rate to be easily controlled, monitored and adjusted via touch screen.

Technical Specifications

HIGH VOLTAGE SOURCE

Has a power of 20 W and provides a maximum current of 1.0 mA at 20.0 kV and 0.67 mA at 30.0 kV.

Adjustable in 0.1 kV steps in the range 0-30.0 kV.

Adjustable current limitation can be realized.

(alternatively 40kV or 50KV).

COLLECTOR FEATURES



Cylinder collector, Stainless Steel

100 mm diameter, 250 mm length collector

314mm×250mm coating area, high precision 0-1000 rpm rotation speed

In addition, a 250mmx250mm plate collector

Bottom-up configuration

SPINNERET MODULE



10-pack spinneret

Electrically conductive stainless

10 spinnerets with different inner diameters (19G,20G,21G)

SPINNERET-TO-COLLECTOR DISTANCE

Adjustable distance in the range up to 260 mm.

Spinneret holder moving in one dimension for homogeneous coating (0 mm/s- 500 mm/s)

CONTROL UNIT

Embedded control unit

Touchscreen with user-friendly interface

3x IdaConnect® Interface

LIQUID DELIVERY

IdaFlow® Syringe Pump

Simultaneously available two-channel two syringe pumping units

Suitable for syringes of different types and volumes.

Adjustable flow rate between 0.1 ml/h and 2000 ml/h

CHAMBER SPESIFICATIONS

LED lighting

Humidity & Temperature sensor to read the relative humidity& temperature in the chamber

GENERAL DIMENSION

Outer dimension: 800mmx850mmx800mm

IP54 Environmental protection

Aluminum mechanism for rust protection

CERTIFICATION

CE, ISO 9001:2015
