NanoWeaver® - Essential+ Electrospinning System
NanoWeaver® - Essential+ Electrospinning System - Smart Control. Advanced Results

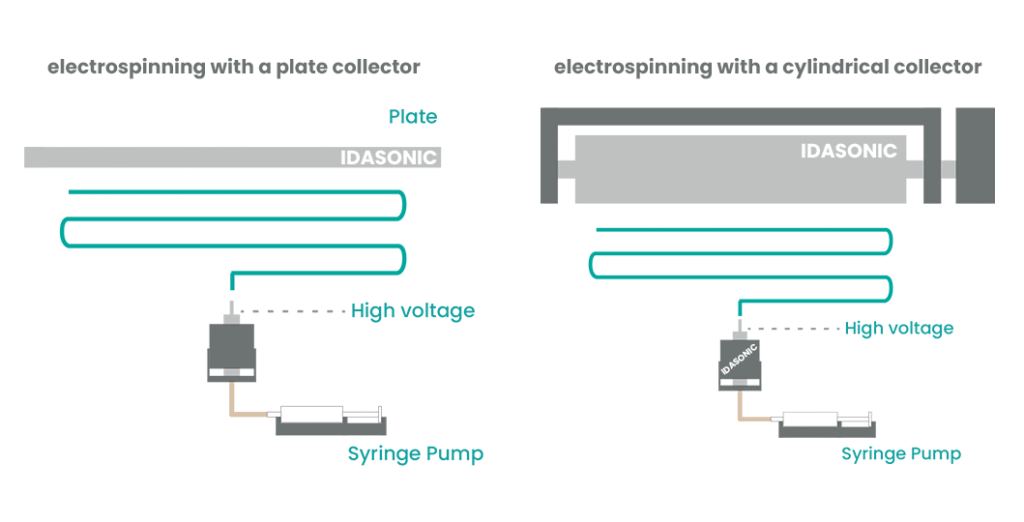

The NanoWeaver®-Essential+ is an advanced and versatile electrospinning system, offering enhanced features for efficient nanofiber production in both research and small-scale industrial applications. It combines user-friendly operation with flexibility, providing a range of options to accommodate diverse needs. The system includes dual collectors, with a side-by-side plate collector and a rotary cylindrical collector, along with an adjustable high-voltage source and support for up to five spinnerets, enabling multi-material electrospinning. The NanoWeaver®-Essential+ comes equipped with two separate IdaFlow® syringe pumps for precise solution delivery. Real-time environmental monitoring, including humidity and temperature sensors, is integrated for optimal control of the electrospinning process. Key parameters such as applied voltage, solution flow rate, and spinneret settings can be easily adjusted via the touchscreen interface, while the spinneret-to-collector distance is manually adjustable, giving users the flexibility to fine-tune the system for producing high-quality nanofibers tailored to specific applications.
| Control System | HMI/SCADA-controlled for real-time monitoring and system management | |
|
IDA-NWR-ESP |
Power Supply | High-voltage source: 0–30.0 kV range, adjustable in 0.1 kV steps. Optional 0–60.0 kV version available upon request. |
| Screen | 7” touchscreen with user-friendly designed interface | |
| Nozzle | Supports up to 5 spinnerets (electrically conductive stainless steel) | |
| Collector | Collector 1: 150 × 150 mm plate, side-by-side configuration. Collector 2: Cylindrical, Ø50 × 150 mm, 157 × 150 mm coating area, 0–500 rpm. | |
| Nozzle-Collector Distance | Manually adjustable distance range: 20 mm – 250 mm | |
| System Configuration | Designed in a side-by-side configuration | |
| Liquid Delivery | Dual-channel system with independently controlled IdaFlow® syringe pumps. | |
| Flow Rate Range | Min: 17.9 nl/min (with BD 1ml syringe) Max: 84 ml/min (with BD 60ml syringe) | |
| Additional Features | LED lighting, Humidity & Temperature sensors | |
| Dimensions | 850 mm x 900 mm x 750 mm | |
| Certification | CE, ISO 9001:2015 |
TECHNICAL SUPPORT AND SERVICES
Customized Equipment Design
Installation & Training
Technical Support & Maintenance
Colsultancy & Application Support
After Sales Services
Related Products
- All Projects
- applicatons
- Blog
- Events
- Genel
- News
What did they say about our products?
"Since its installation in our lab in Metallurgical and Materials Engineering Department, the UltraSprayer-Starter system has not only facilitated our ongoing research on solar cells and photocatalyst thin films, but also significantly expanded our research capabilities by enabling the coating of metallic materials. Its ease of use in non-vacuum environments, advanced electronic infrastructure, and suitability for large-area deposition have made it an integral part of both undergraduate and academic research activities. The system has found widespread use among our students and academic staff alike, supporting a diverse range of experimental studies."
“In our research group, we have been actively using IDASONIC’s triple syringe pump in our spray coating system, and we are very satisfied with the results. For our work on semiconductor thin films—particularly oxide- and sulfide-based compounds for optoelectronic circuit elements—the pump’s precise and stable flow control provides a significant advantage. Even at very low flow rates, it ensures consistent and reproducible performance. This reliability has improved both the accuracy of our experiments and the overall quality of the thin films we produce. IDASONIC’s syringe pump has become an essential tool for our research activities.”
“In our research group at Çanakkale Onsekiz Mart University, we are using IDASONIC’s NanoWeaver® Pro electrospinning system for our studies on advanced wound dressings, particularly targeting diabetic wound healing applications. The system’s high precision, stability, and versatility in nanofiber production allow us to design and fabricate functional wound dressings with controlled morphology and tailored properties. This capability significantly enhances the quality and reproducibility of our experimental results. IDASONIC’s NanoWeaver® Pro has become a key technology enabling us to advance our research on innovative solutions for diabetic wound treatment.”
“At the Department of Metallurgical and Materials Engineering, we are using IDASONIC’s UltraSprayer® Pro ultrasonic spray coating system for our research on transparent conductive oxide (TCO) thin films, particularly aluminum-doped zinc oxide (AZO). The system provides excellent control over film thickness, uniformity, and reproducibility, which are critical parameters in our work. With UltraSprayer® Pro, we have been able to produce high-quality AZO coatings with improved optical and electrical properties, directly supporting our research on next-generation functional materials. The device has proven to be a reliable and indispensable part of our laboratory.”
With the introduction of the Electrospinning System into our laboratory, we immediately noticed a positive shift in our research workflow. Its compact structure and intuitive controls allowed our graduate students to start experiments quickly without the need for extensive training. The device enabled us to fabricate uniform and reproducible nanofiber structures, which had been difficult to achieve with traditional methods. For research groups engaged in nanomaterials, biomedical applications, or advanced composites, this system stands out as a practical educational platform and an innovative tool that enhances both teaching and research. In addition, the responsive technical support and service provided gave us extra confidence, ensuring that we could focus on our experiments without interruptions.
“At COBILTUM, we have been using the NanoWeaver® Pro system in our studies on smart windows, wound dressings, drug delivery systems, and various nanofiber-based coatings. The system offers reliable performance and flexibility, which helps us to work on both materials science and biomedical applications. Its capability to produce uniform nanofibers with controlled properties has made it a practical tool for our research group, supporting different projects in a consistent way.”
From Our Blog
Discover how nanocoating technologies revolutionize hydrogen energy systems. Enhance durability, efficiency, and corrosion resistance with Idasonic’s precision surface engineering solutions.
The world’s energy transformation is accelerating. As countries, industries, and research institutions move away from fossil fuels, their focus increasingly...
In recent years, nanofiber technology has revolutionized the cosmetic industry by providing new approaches for skin regeneration, active ingredient delivery,...
Frequently Asked Questions(FAQ)
The NanoWeaver®-Essential+ includes dual collectors (plate and rotary cylindrical), support for up to five spinnerets, and dual IdaFlow® syringe pumps, allowing multi-material electrospinning with greater precision and flexibility.
Yes. The system is designed for both research and small-scale industrial applications, making it suitable for a wide range of uses including nanofiber research, filtration, biomedical applications, and material science projects.
The system features real-time environmental monitoring with integrated humidity and temperature sensors. Key parameters such as voltage, flow rate, and spinneret settings can be controlled and adjusted via the touchscreen interface.
Absolutely. Despite its advanced features, the NanoWeaver®-Essential+ is designed with a user-friendly interface and manual adjustments like spinneret-to-collector distance, making it accessible for both new users and experienced researchers.
