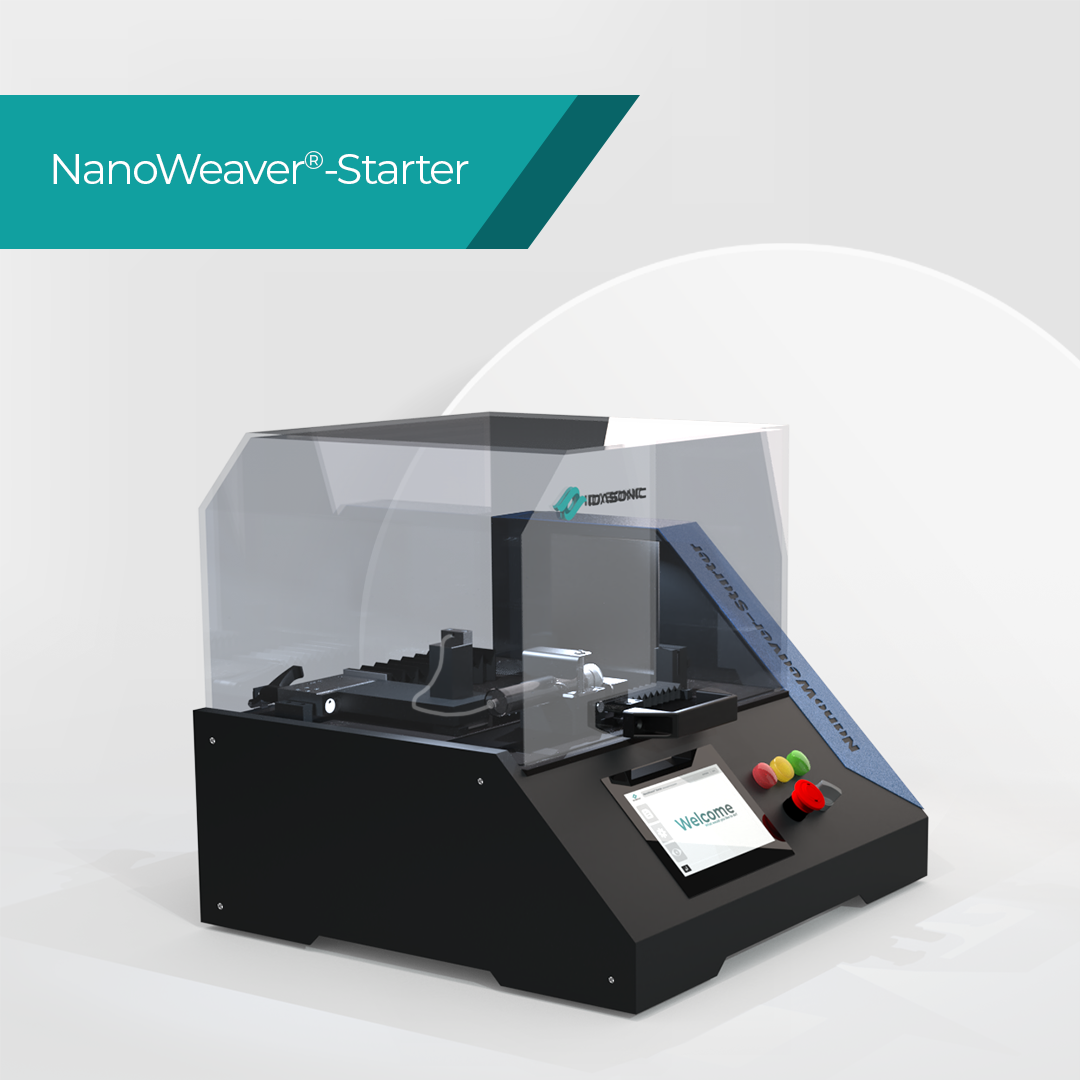

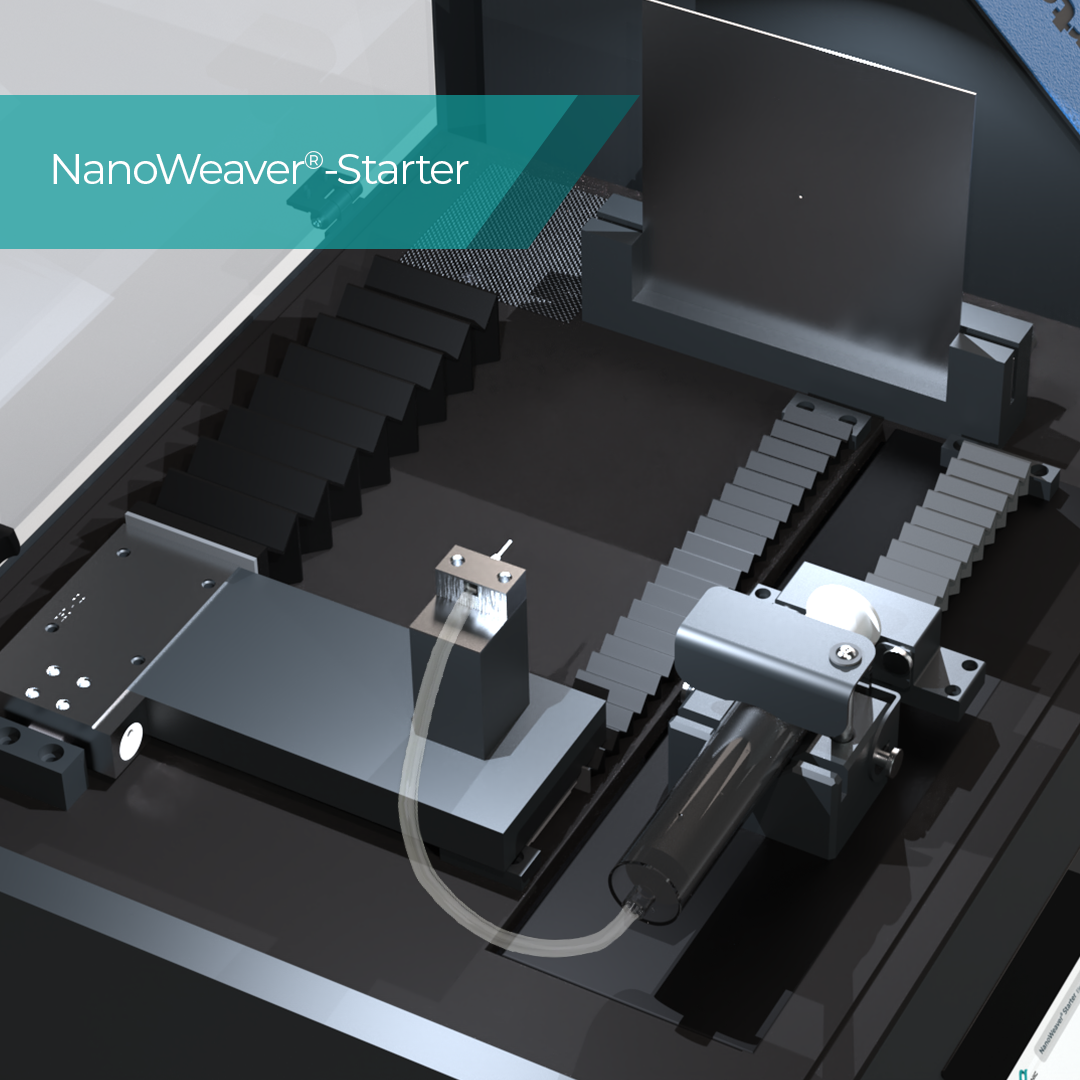

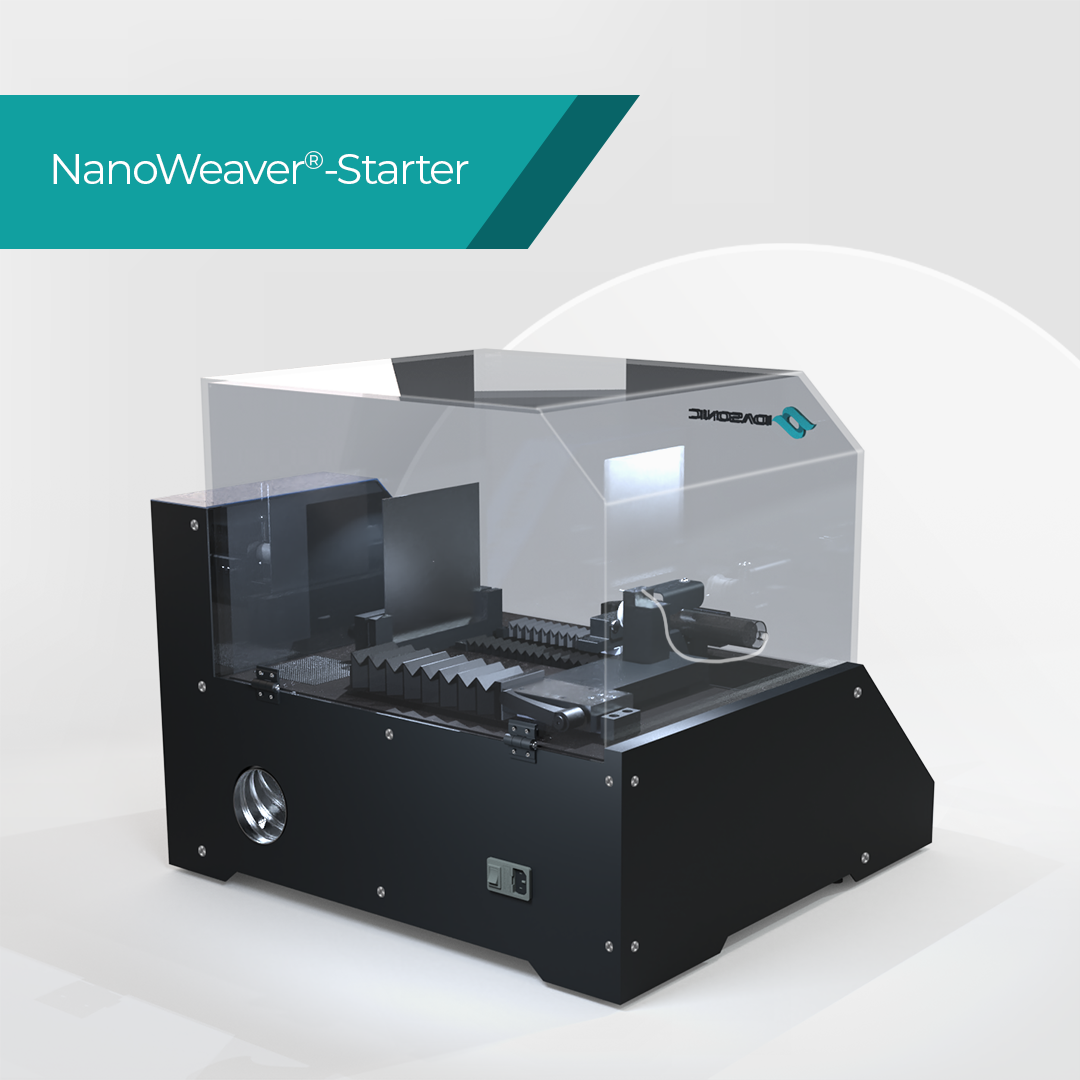

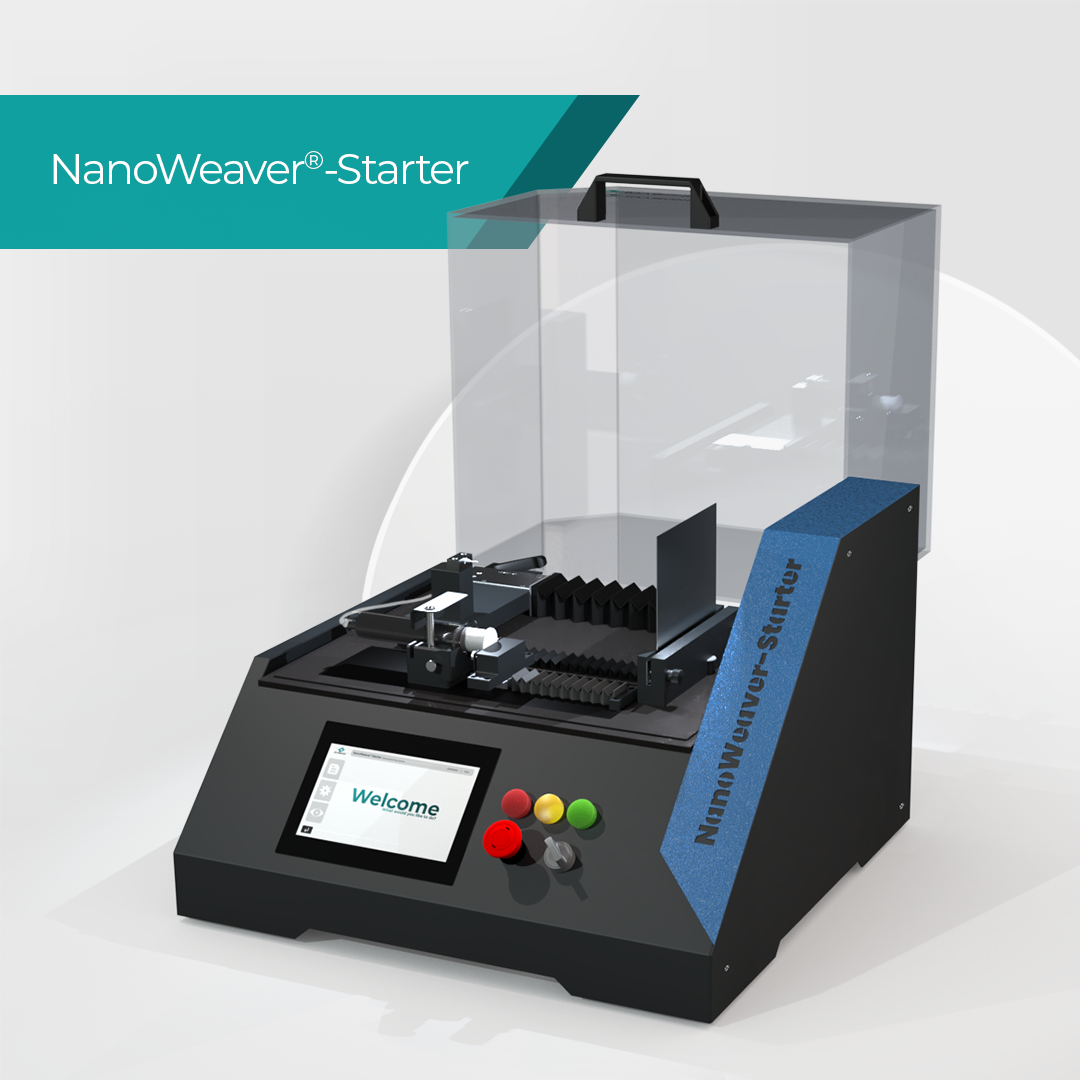

The NanoWeaver®-Starter is the most economical entry in our electrospinning product family, designed for basic yet efficient nanofiber production. Equipped with a plane collector, a high-voltage source (0–30 kV), a single stainless-steel spinneret, and the IdaFlow®-Single-channel syringe pump, it offers essential functionality for polymer-based nanofiber fabrication.
The system allows users to manually adjust key parameters such as spinneret-to-collector distance, voltage, flow rate, providing flexibility in optimizing fiber properties. With its PLC-controlled operation, intuitive touchscreen interface, the NanoWeaver®-Starter offers reliable and user-friendly performance for research and small-scale applications.
Technical Specifications
| HIGH VOLTAGE SOURCE | Has a power of 20 W and provides a maximum current of 1.0 mA at 20.0 kV and 0.67 mA at 30.0 kV. Adjustable in 0.1 kV steps in the range 0-30.0 kV. Adjustable current limitation can be realized. |
| COLLECTOR FEATURES | 150mmx150mm plate collector Side by side configuration |
| SPINNERET MODULE | Single spinneret Electrically conductive stainless |
| SPINNERET-TO-COLLECTOR DISTANCE | Manually adjustable distance up to 200 mm |
| LIQUID DELIVERY | IdaFlow® Syringe Pump single-channel syringe pump Suitable for syringes of different types and volumes. Adjustable flow rate between 0.1 ml/h and 2000 ml/h |
| CERTIFICATION | CE, ISO 9001:2015 |
"We integrated the UltraSprayer®-Starter into our university lab, and the impact was immediate. Its desktop size and intuitive touchscreen controls allowed our graduate students to get up and running with minimal training. We've achieved outstanding uniformity in our thin-film solar cell prototypes, something we struggled with using other methods. For any academic institution focused on materials science, this is a brilliant, cost-effective tool that genuinely accelerates the research process."
"As the manager of a startup's R&D lab, budget is always a primary concern. The UltraSprayer®-Starter provided the perfect entry point into high-quality ultrasonic coating without the massive capital investment. We were impressed by its performance, especially in depositing homogeneous nano-coatings for our flexible sensor development. It's a simple, reliable, and effective workhorse that has become essential to our daily operations."
"The precision of the UltraSprayer®-Starter is its greatest asset. In our work with semiconductor thin films, controlling the deposition process is critical. This machine delivers exceptional consistency and produces flawless, even coatings every time. The combination of the syringe pump and the heated plate gives us the fine control we need for repeatable, high-quality results. It's an economical solution that performs well beyond its price point."
IDASONIC, a leading Turkish high-tech company, has released a new brochure highlighting its cutting-edge nanocoating and nanofiber technologies developed specifically...
We are proud to announce that the IdaFlow®-Trio syringe pump developed by IDASONIC has been successfully delivered to Kütahya Dumlupınar...
The UltraSprayer Essential model developed byIDASONIC has been delivered to Karlsruhe Institute of Technology (KIT), one of Europe’s leading research...
NanoWeaver®-Pro is designed for the production of polymer-based nanofibers. It can be applied in research and development processes across industries such as medicine, biotechnology, environment, textiles, electronics, and many more.
NanoWeaver®-Pro is equipped with multiple spinnerets, dual-channel syringe pumps, and collectors with different geometries. In addition, all experimental parameters (distance, speed, voltage, flow rate, etc.) can be easily adjusted via the touchscreen interface.
No. Thanks to its user-friendly interface, NanoWeaver®-Pro can be easily operated in laboratory environments. With basic device training, users can quickly start production.
The compact desktop design saves laboratory space, making it ideal for research centers or university laboratories with limited working areas.
