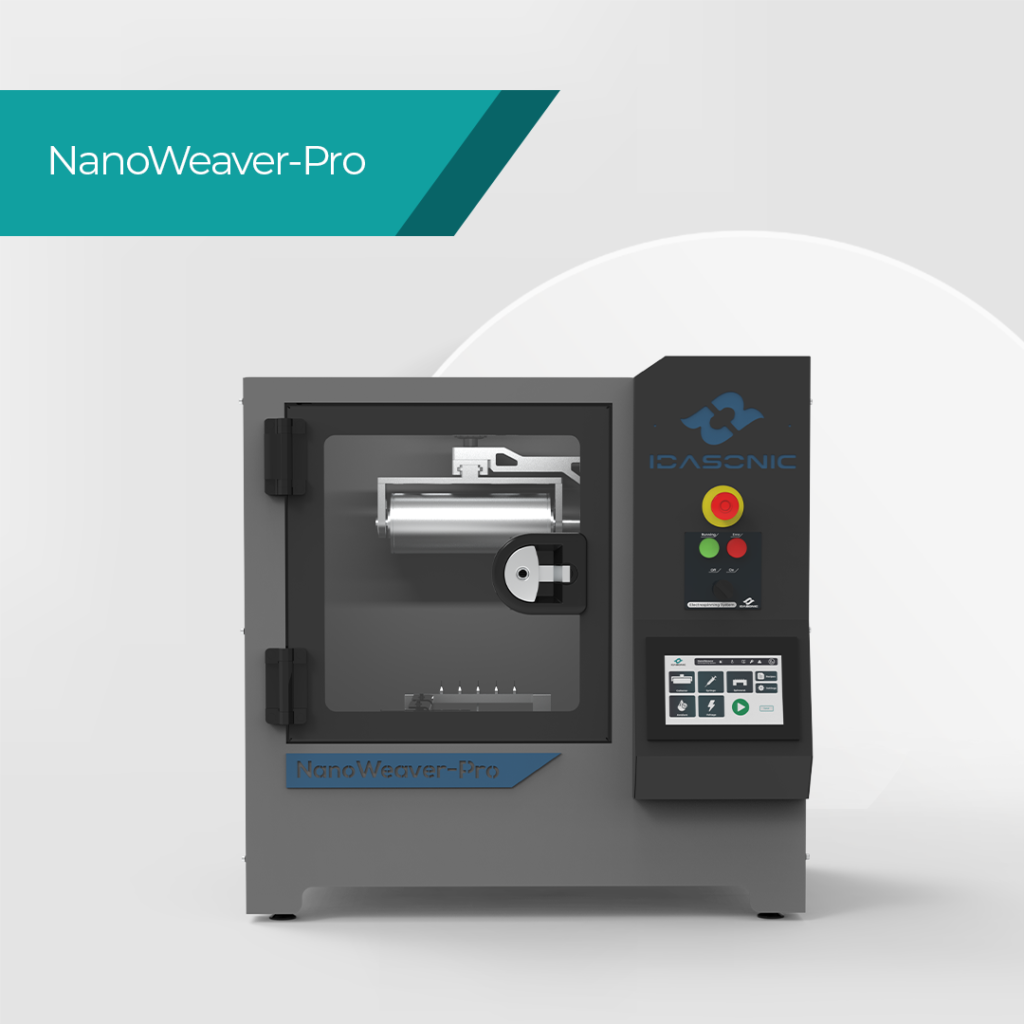

NanoWeaver®-Pro has the appropriate design and features required for the successful production of polymer-based nanofibers. It offers the flexibility to adapt to the ever-changing requirements for obtaining nanofibers with a wide range of applications in many industries such as medicine, biotechnology, environment, textiles, electronics and many others. Furthermore, its compact desktop design and user-friendly interface increase productivity in laboratory environments and keep users focused. This innovative device is equipped with features such as different geometries of collectors, multiple spinnerets and two syringe pump with two separate channels. This allows users to perform a wide range of experiments and easily produce their desired nanofiber structures. NanoWeaver®-Pro allows all experimental parameters such as spinneret-to-collector distance, spinneret movement speed, applied voltage, solution delivery rate, etc. to be easily controlled, monitored and changed via the touch screen, allowing users to produce nanofibers with the desired properties. Optimize your R&D processes and discover innovative solutions with the NanoWeaver®-Pro.
| Control System | HMI/SCADA-controlled for real-time monitoring and system management |
| Power Supply | High-voltage source: 0–30.0 kV range, adjustable in 0.1 kV steps. Optional 0–60.0 kV version available upon request. |
| Screen | 7” touchscreen with user-friendly designed interface |
| Nozzle | Supports up to 10 spinnerets (electrically conductive stainless steel) |
| Collector |
Collector 1: 250 × 250 mm plate, bottom-up configuration. Collector 2: Cylindrical, Ø100 × 250 mm, 314 × 250 mm coating area, 0–500 rpm. |
| Nozzle-Collector Distance | Automatic distance adjustment up to 260 mm. The nozzle holder moves in a single dimension at speeds ranging from 0 to 500 mm/s. |
| System Configuration | Designed in a bottom-up configuration. |
| Liquid Delivery | Dual-channel system with independently controlled IdaFlow® syringe pumps. |
| Flow Rate Range | Min: 17.9 nl/min (with BD 1ml syringe) Max: 84 ml/min (with BD 60ml syringe) |
| Additional Features | LED lighting, Humidity & Temperature sensors |
| Dimensions | 850 mm x 900 mm x 750 mm |
| Certification | CE, ISO 9001:2015 |
"Since its installation in our lab in Metallurgical and Materials Engineering Department, the UltraSprayer-Starter system has not only facilitated our ongoing research on solar cells and photocatalyst thin films, but also significantly expanded our research capabilities by enabling the coating of metallic materials. Its ease of use in non-vacuum environments, advanced electronic infrastructure, and suitability for large-area deposition have made it an integral part of both undergraduate and academic research activities. The system has found widespread use among our students and academic staff alike, supporting a diverse range of experimental studies."
“In our research group, we have been actively using IDASONIC’s triple syringe pump in our spray coating system, and we are very satisfied with the results. For our work on semiconductor thin films—particularly oxide- and sulfide-based compounds for optoelectronic circuit elements—the pump’s precise and stable flow control provides a significant advantage. Even at very low flow rates, it ensures consistent and reproducible performance. This reliability has improved both the accuracy of our experiments and the overall quality of the thin films we produce. IDASONIC’s syringe pump has become an essential tool for our research activities.”
“In our research group at Çanakkale Onsekiz Mart University, we are using IDASONIC’s NanoWeaver® Pro electrospinning system for our studies on advanced wound dressings, particularly targeting diabetic wound healing applications. The system’s high precision, stability, and versatility in nanofiber production allow us to design and fabricate functional wound dressings with controlled morphology and tailored properties. This capability significantly enhances the quality and reproducibility of our experimental results. IDASONIC’s NanoWeaver® Pro has become a key technology enabling us to advance our research on innovative solutions for diabetic wound treatment.”
“At the Department of Metallurgical and Materials Engineering, we are using IDASONIC’s UltraSprayer® Pro ultrasonic spray coating system for our research on transparent conductive oxide (TCO) thin films, particularly aluminum-doped zinc oxide (AZO). The system provides excellent control over film thickness, uniformity, and reproducibility, which are critical parameters in our work. With UltraSprayer® Pro, we have been able to produce high-quality AZO coatings with improved optical and electrical properties, directly supporting our research on next-generation functional materials. The device has proven to be a reliable and indispensable part of our laboratory.”
With the introduction of the Electrospinning System into our laboratory, we immediately noticed a positive shift in our research workflow. Its compact structure and intuitive controls allowed our graduate students to start experiments quickly without the need for extensive training. The device enabled us to fabricate uniform and reproducible nanofiber structures, which had been difficult to achieve with traditional methods. For research groups engaged in nanomaterials, biomedical applications, or advanced composites, this system stands out as a practical educational platform and an innovative tool that enhances both teaching and research. In addition, the responsive technical support and service provided gave us extra confidence, ensuring that we could focus on our experiments without interruptions.
“At COBILTUM, we have been using the NanoWeaver® Pro system in our studies on smart windows, wound dressings, drug delivery systems, and various nanofiber-based coatings. The system offers reliable performance and flexibility, which helps us to work on both materials science and biomedical applications. Its capability to produce uniform nanofibers with controlled properties has made it a practical tool for our research group, supporting different projects in a consistent way.”
We are excited to share new progress from our biomaterials surface engineering studies. Using a controlled ultrasonic spray coating approach,...
We are excited to share new progress from our biomaterials surface engineering studies. Using a controlled ultrasonic spray coating approach,...
Electrospinning is at the core of next-generation material science. With the ability to produce uniform, functional nanofibers, it is revolutionizing...
NanoWeaver®-Pro is designed for the production of polymer-based nanofibers. It can be applied in research and development processes across industries such as medicine, biotechnology, environment, textiles, electronics, and many more.
NanoWeaver®-Pro is equipped with multiple spinnerets, dual-channel syringe pumps, and collectors with different geometries. In addition, all experimental parameters (distance, speed, voltage, flow rate, etc.) can be easily adjusted via the touchscreen interface.
No. Thanks to its user-friendly interface, NanoWeaver®-Pro can be easily operated in laboratory environments. With basic device training, users can quickly start production.
The compact desktop design saves laboratory space, making it ideal for research centers or university laboratories with limited working areas.
