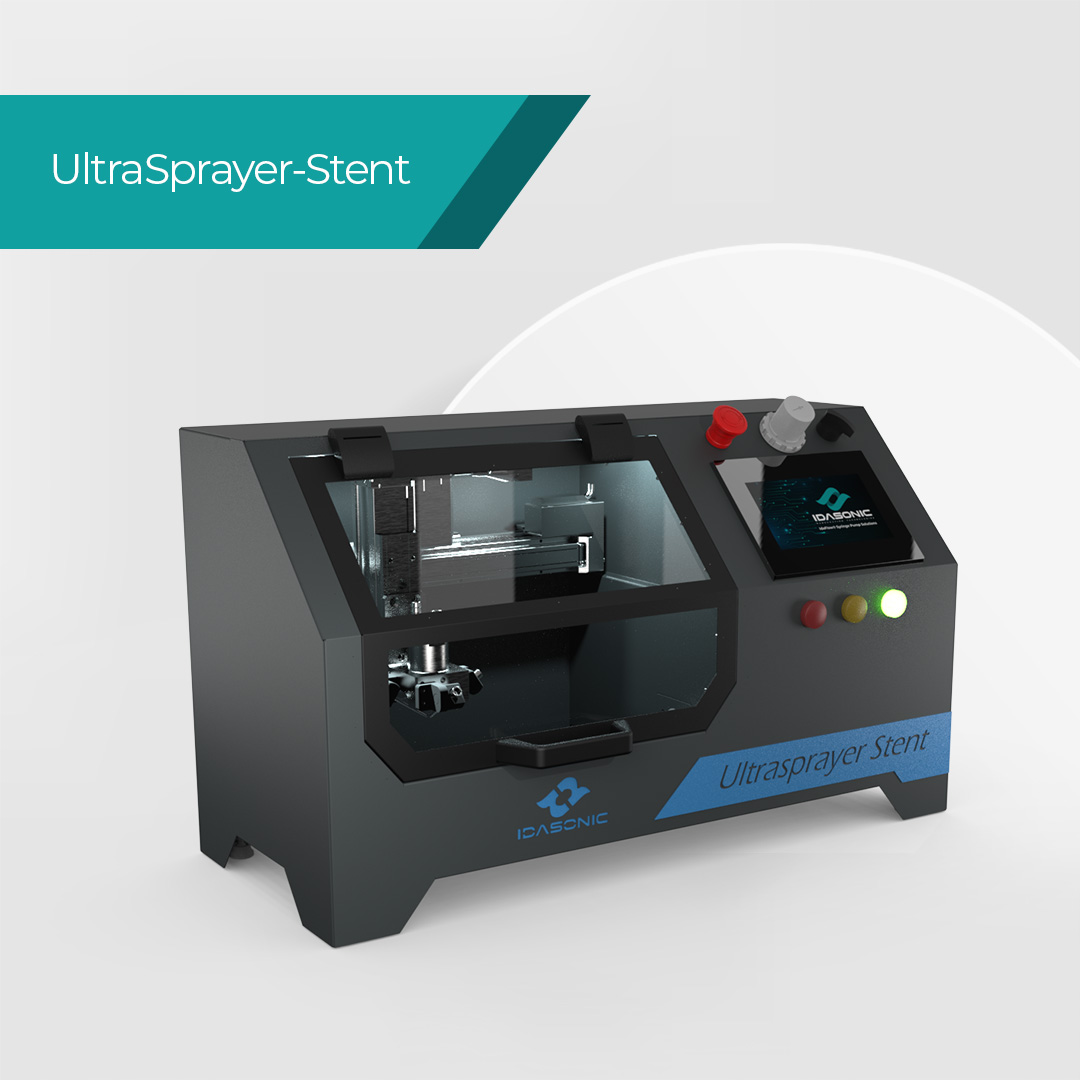

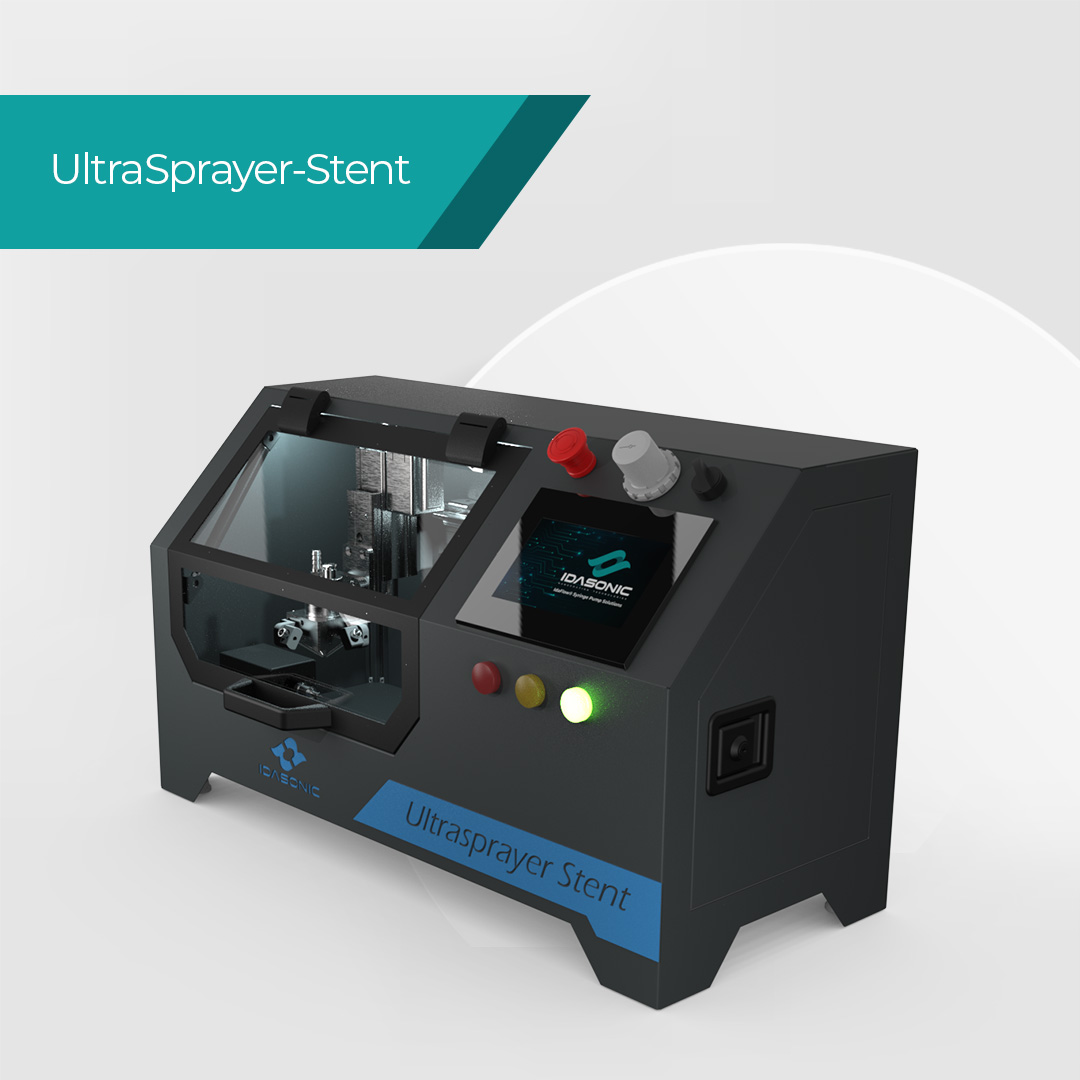

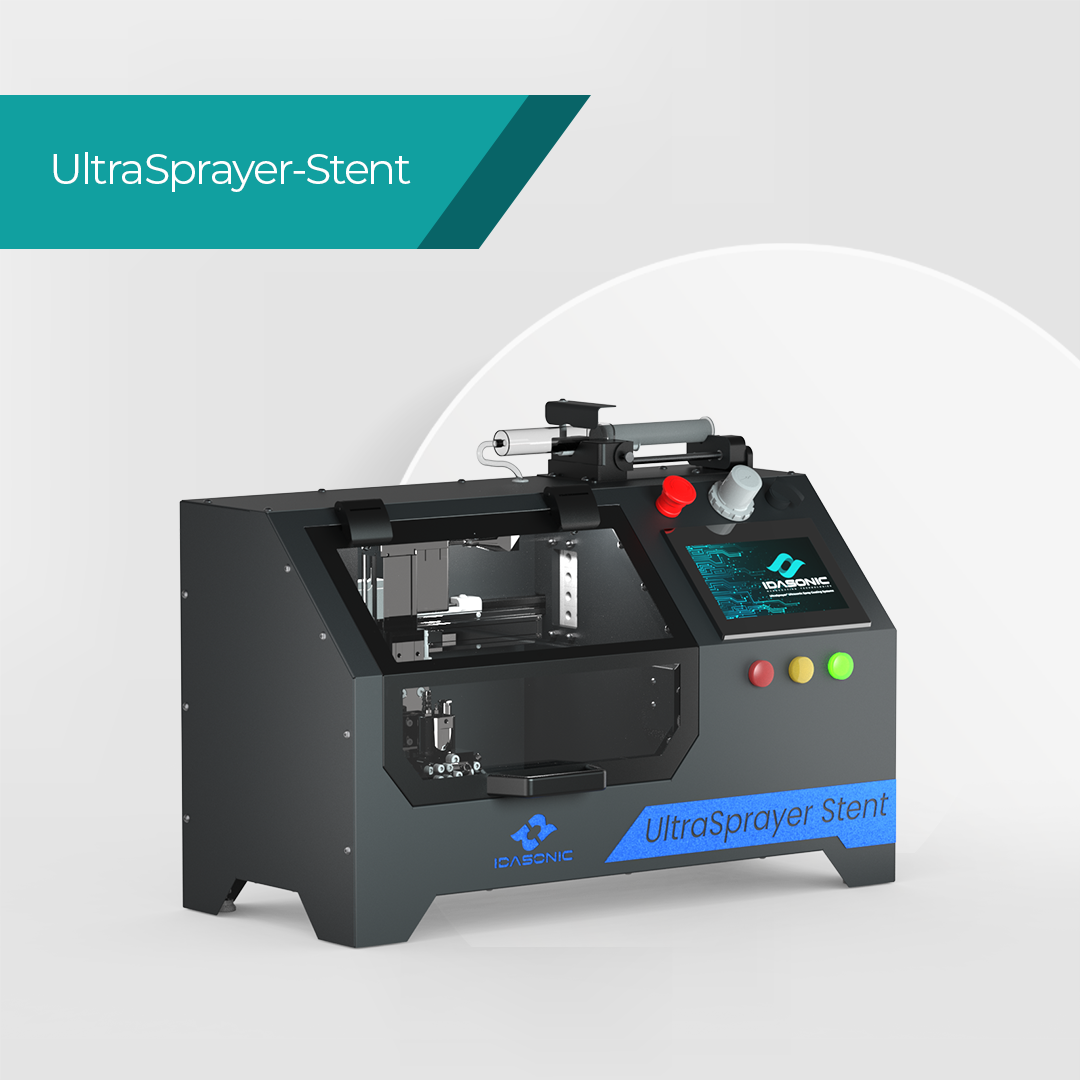

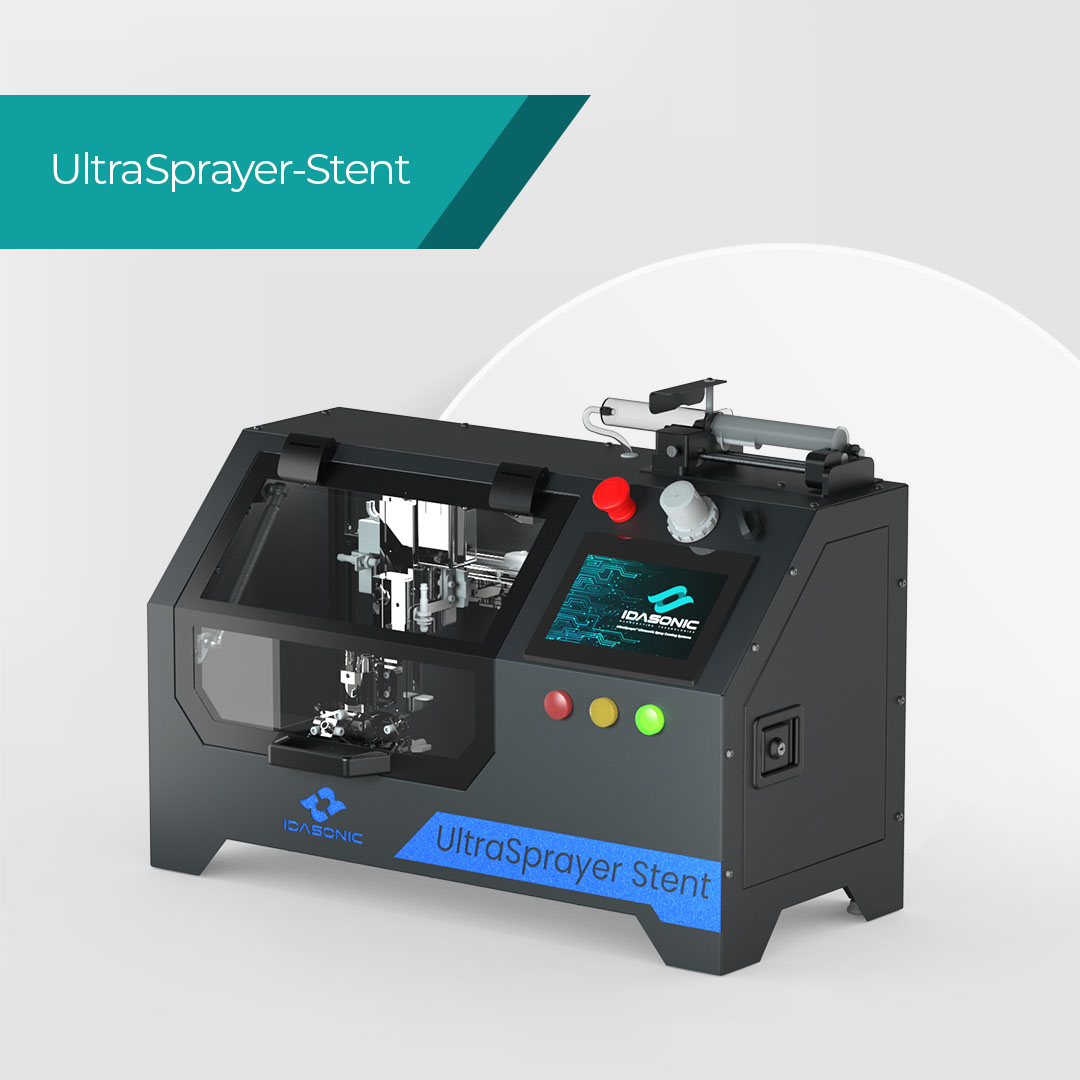

With its compact size and user-friendly design, the UltraSprayer®-Stent offers the perfect balance of performance and accessibility for those just starting with spray coating technology. Specifically designed for medical applications, it enables simultaneous coating of two stents within a single system, with an optional integrated camera for real-time process monitoring.
| Control System | HMI/SCADA-controlled for real-time monitoring and system management | |
|
IDA-USP-STN |
Power Supply | 200 V AC, 50 Hz, single-phase, Type F (Schuko) plug. |
| Screen | 7” touchscreen with user-centered interface design | |
| Nozzle Motion | Fixed Nozzle with adjustable Z-axis (1 mm – 54.50 mm) | |

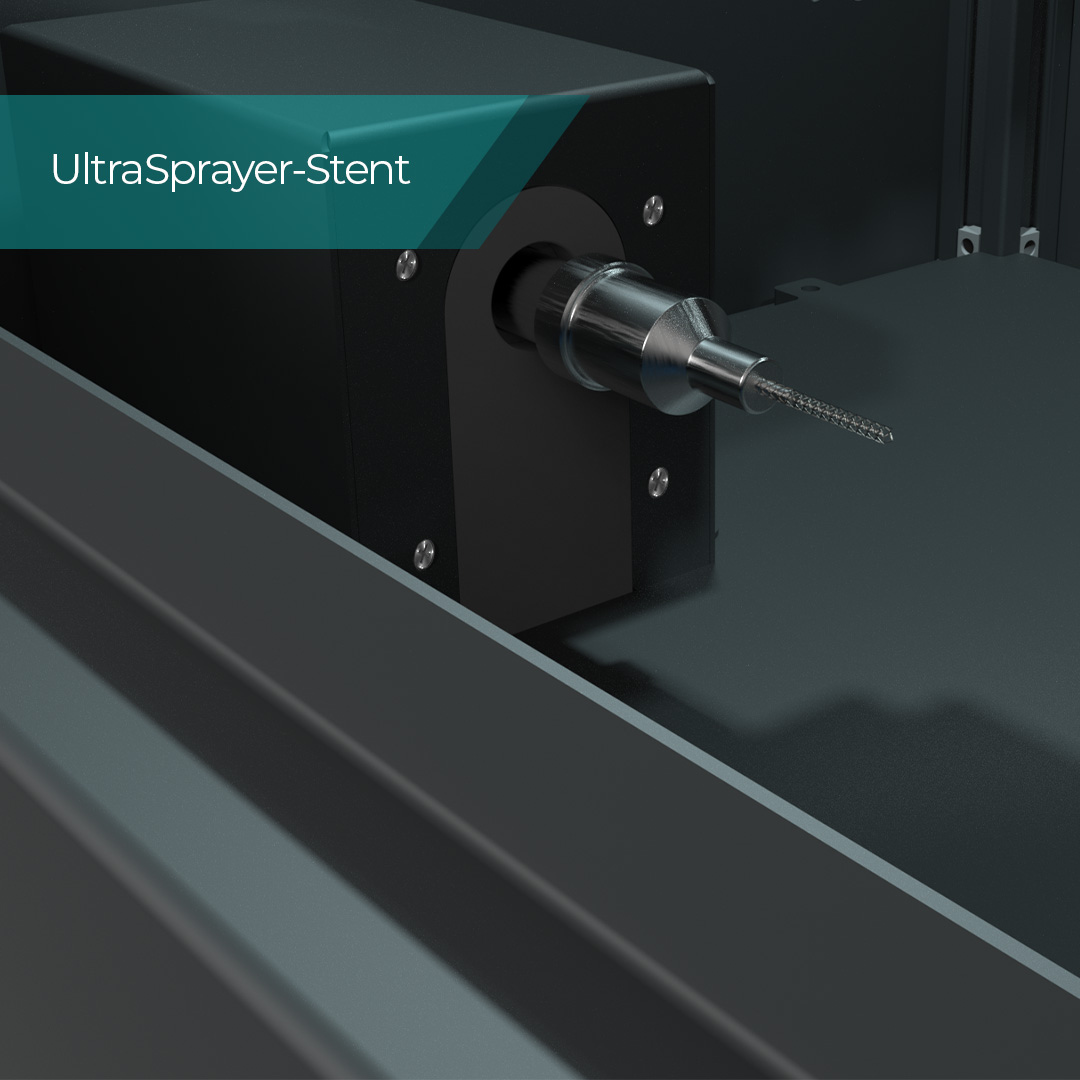

| Ultrasonic Spray Nozzle | IdaMist® Ultrasonic Atomizer (100 kHz) with narrow spray geometry, optimized for stent coating | |
| Number of Stents | Up to two stents can be inserted into the device in a single operation | |
| Liquid Delivery | Single-channel syringe pump, up to 60 ml syringes | |
| Flow Rate Range | Min: 17.9 nl/min (with BD 1ml syringe) Max: 84 ml/min (with BD 60ml syringe) | |
| Additional Features | Environmental Monitoring, LED Lighting, Camera (Optional) | |
| Dimensions | 750 mm (W) x 321 mm (D) x 440 mm (H) | |
| Carrier Gas Regulation | Manual pressure regulator | |
| Certification | CE, ISO 9001:2015 |
"Since its installation in our lab in Metallurgical and Materials Engineering Department, the UltraSprayer-Starter system has not only facilitated our ongoing research on solar cells and photocatalyst thin films, but also significantly expanded our research capabilities by enabling the coating of metallic materials. Its ease of use in non-vacuum environments, advanced electronic infrastructure, and suitability for large-area deposition have made it an integral part of both undergraduate and academic research activities. The system has found widespread use among our students and academic staff alike, supporting a diverse range of experimental studies."
“In our research group, we have been actively using IDASONIC’s triple syringe pump in our spray coating system, and we are very satisfied with the results. For our work on semiconductor thin films—particularly oxide- and sulfide-based compounds for optoelectronic circuit elements—the pump’s precise and stable flow control provides a significant advantage. Even at very low flow rates, it ensures consistent and reproducible performance. This reliability has improved both the accuracy of our experiments and the overall quality of the thin films we produce. IDASONIC’s syringe pump has become an essential tool for our research activities.”
“In our research group at Çanakkale Onsekiz Mart University, we are using IDASONIC’s NanoWeaver® Pro electrospinning system for our studies on advanced wound dressings, particularly targeting diabetic wound healing applications. The system’s high precision, stability, and versatility in nanofiber production allow us to design and fabricate functional wound dressings with controlled morphology and tailored properties. This capability significantly enhances the quality and reproducibility of our experimental results. IDASONIC’s NanoWeaver® Pro has become a key technology enabling us to advance our research on innovative solutions for diabetic wound treatment.”
“At the Department of Metallurgical and Materials Engineering, we are using IDASONIC’s UltraSprayer® Pro ultrasonic spray coating system for our research on transparent conductive oxide (TCO) thin films, particularly aluminum-doped zinc oxide (AZO). The system provides excellent control over film thickness, uniformity, and reproducibility, which are critical parameters in our work. With UltraSprayer® Pro, we have been able to produce high-quality AZO coatings with improved optical and electrical properties, directly supporting our research on next-generation functional materials. The device has proven to be a reliable and indispensable part of our laboratory.”
With the introduction of the Electrospinning System into our laboratory, we immediately noticed a positive shift in our research workflow. Its compact structure and intuitive controls allowed our graduate students to start experiments quickly without the need for extensive training. The device enabled us to fabricate uniform and reproducible nanofiber structures, which had been difficult to achieve with traditional methods. For research groups engaged in nanomaterials, biomedical applications, or advanced composites, this system stands out as a practical educational platform and an innovative tool that enhances both teaching and research. In addition, the responsive technical support and service provided gave us extra confidence, ensuring that we could focus on our experiments without interruptions.
“At COBILTUM, we have been using the NanoWeaver® Pro system in our studies on smart windows, wound dressings, drug delivery systems, and various nanofiber-based coatings. The system offers reliable performance and flexibility, which helps us to work on both materials science and biomedical applications. Its capability to produce uniform nanofibers with controlled properties has made it a practical tool for our research group, supporting different projects in a consistent way.”
Discover how nanocoating technologies revolutionize hydrogen energy systems. Enhance durability, efficiency, and corrosion resistance with Idasonic’s precision surface engineering solutions.
The world’s energy transformation is accelerating. As countries, industries, and research institutions move away from fossil fuels, their focus increasingly...
In recent years, nanofiber technology has revolutionized the cosmetic industry by providing new approaches for skin regeneration, active ingredient delivery,...
The UltraSprayer®-Stent is specifically designed for medical use, providing precise and uniform coatings for stents. Its ability to coat two stents simultaneously ensures efficiency while maintaining high-quality standards required in medical applications.
The system supports the simultaneous coating of two stents within a single operation, making it both time-efficient and reliable for laboratory and clinical research environments.
Yes. The system offers an optional integrated camera that allows real-time monitoring of the coating process, ensuring greater accuracy and control.
Absolutely. With its compact size and user-friendly design, the UltraSprayer®-Stent is an ideal entry point for researchers or organizations starting with spray coating technology, offering a balance of performance and accessibility.
