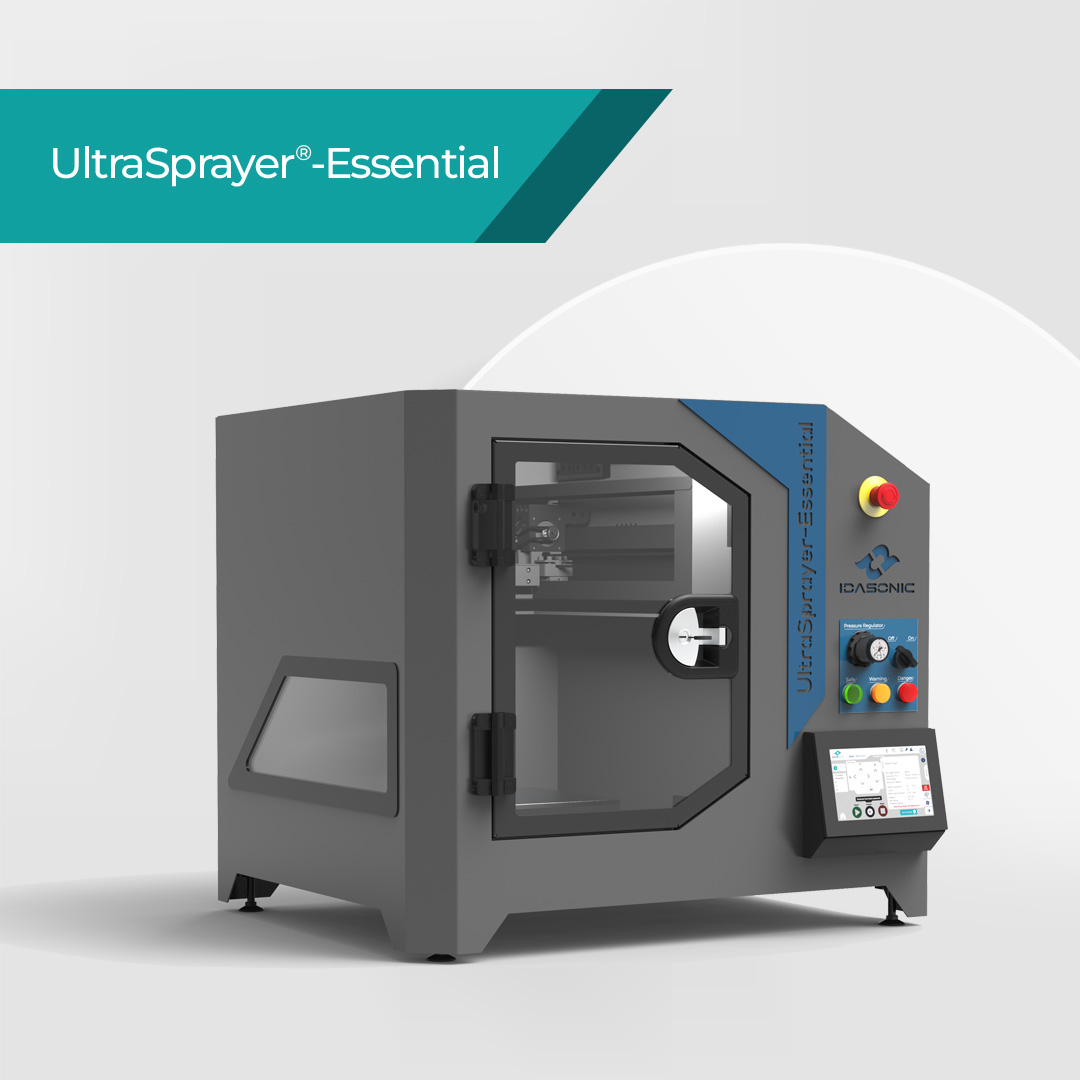

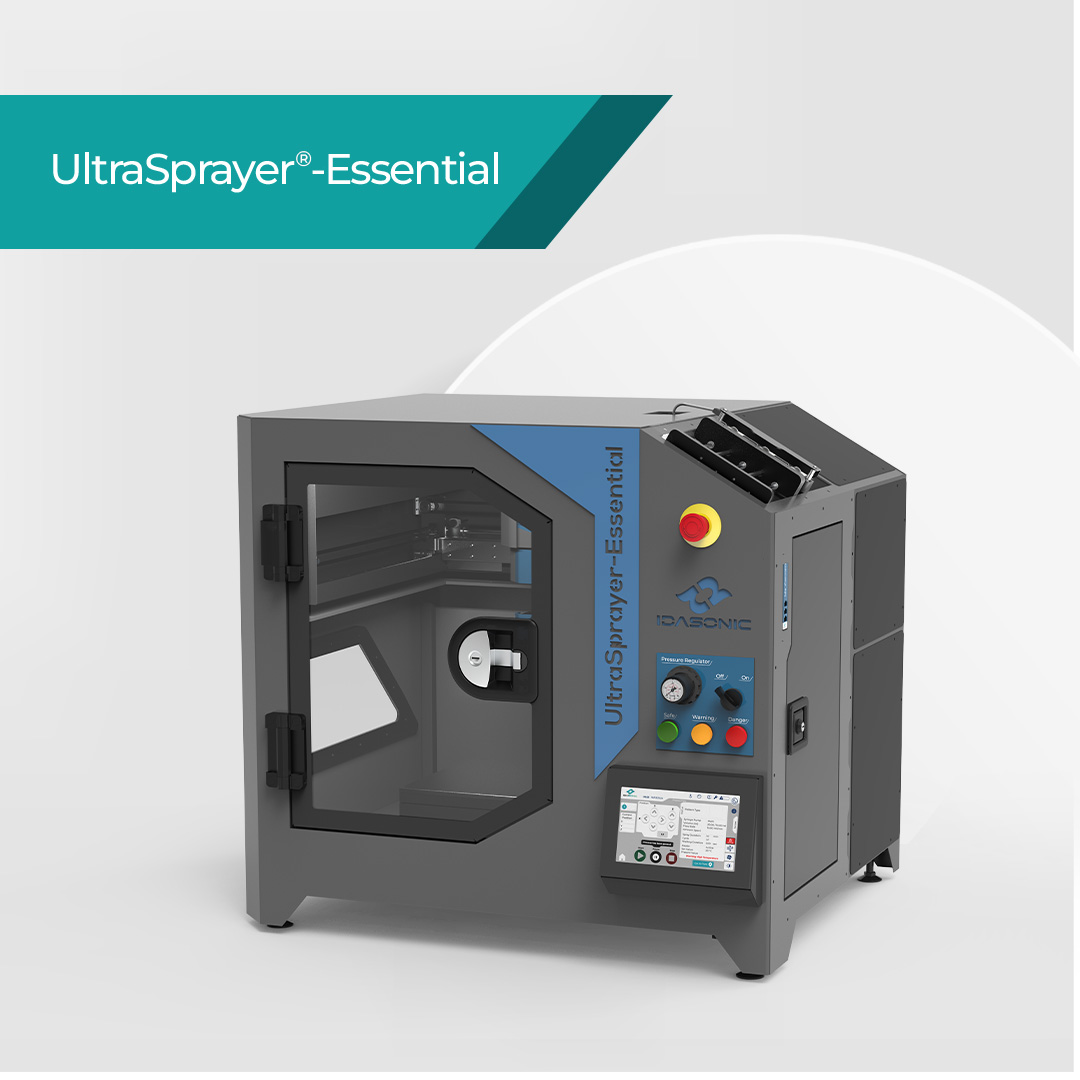

UltraSprayer® -Essential

UltraSprayer®-Essential is our desktop product of economical and essential equipment specifically designed for use in research and development (R&D). It can be used in a variety of fields such as solar cells, fuel cells, optoelectronic devices, semiconductor thin film coating and flexible electronic devices. The basic equipment includes a triple syringe pump, XY motion spray nozzle and heater plate that can be controlled via touch screen and is simple to use. UltraSprayer®-Essential offers superior performance, especially in the production of homogeneous nano-sized coatings in thin film form. This product can be easily used in laboratory environments and is a cost-effective addition to the product development process, increasing the speed of researchers and R&D efforts. Get in touch with us today to discover more about the UltraSprayer®-Essential and find the cost-effective answer for your nanocoating needs!

Technical Specifications

CONTROL UNIT

Embedded control unit

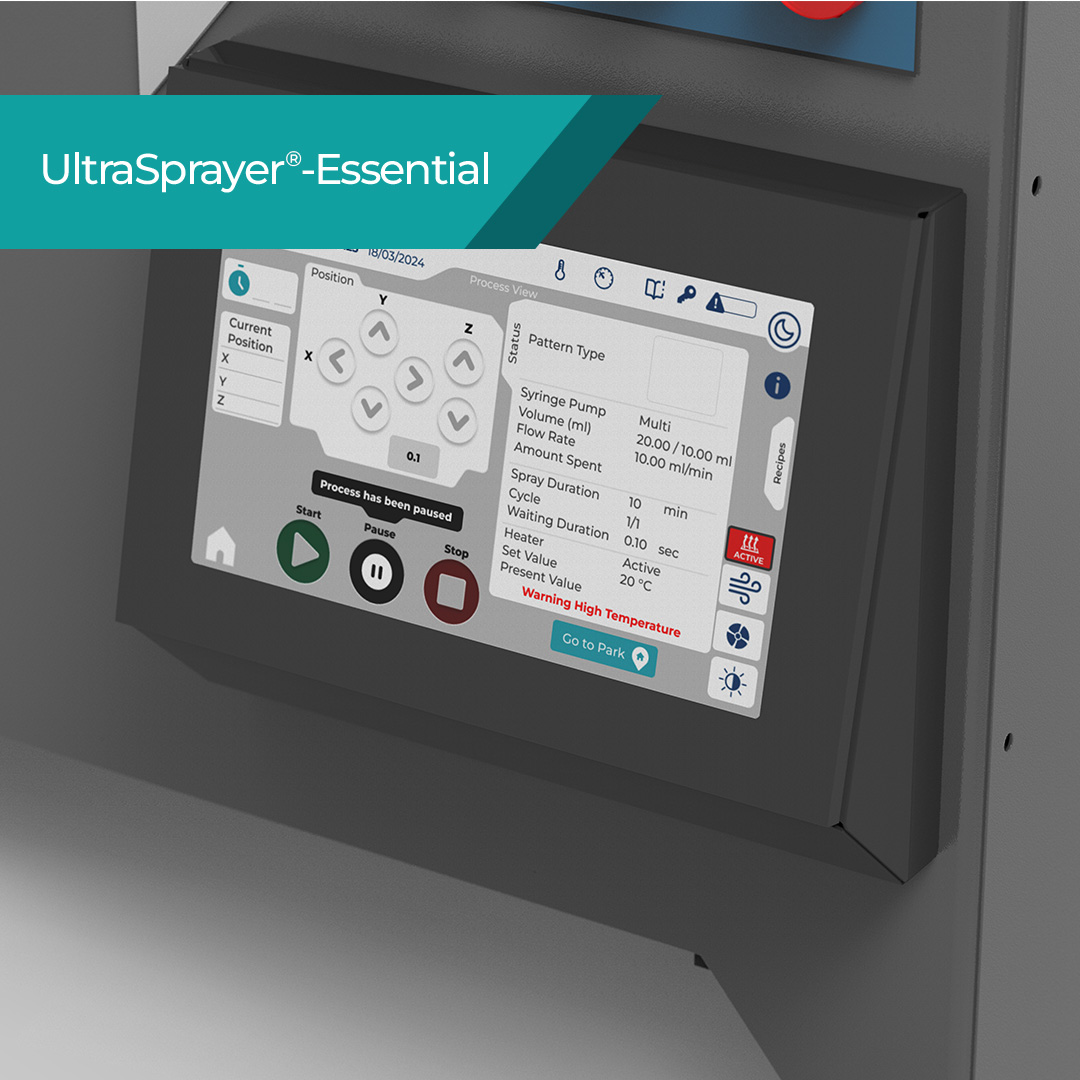

Touchscreen with user-friendly interface

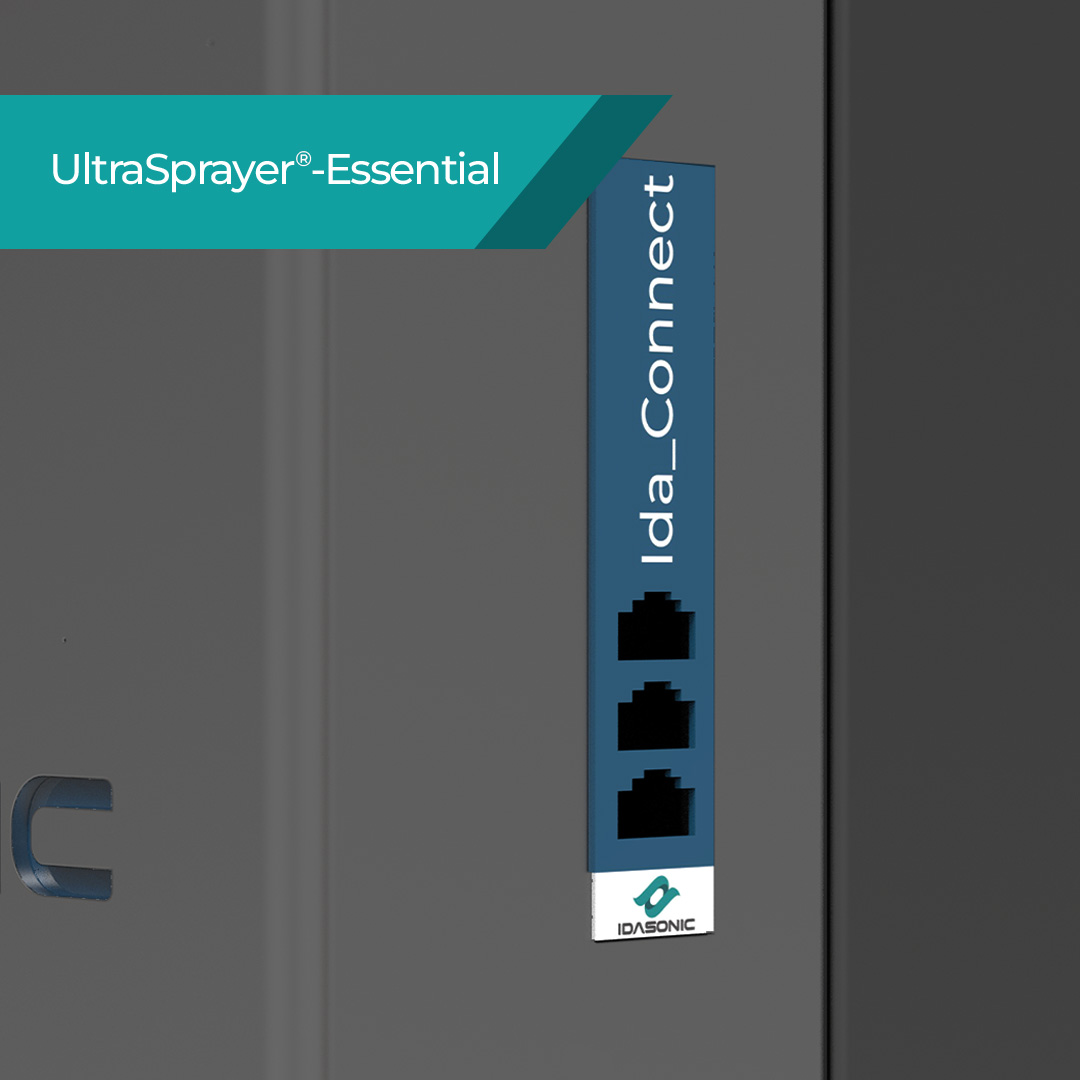

3x IdaConnect® Interface

NOZZLE MOTION

XY scanning area 250mmx250m

Nozzle travel speed up to 1500 mm/s

Nozzle travel acceleration 500 mm/s²

Z-height can be manually adjusted between 50-300 mm

IP54 Environmental protection Aluminum mechanism for rust protection

ULTRASONIC SPRAY NOZZLE

IdaMist® Ultrasonic Atomizer

Operating frequency 100 kHz (options are available.)

Output power 8 W

Average droplet size ~20 µm

HEATING PLATE

Operating temperature: max 500°C

Up to 250mmx250mm surface area

Precise temperature control with K-type thermocouple

VACUUM PLATE (OPTIONAL)

250 mm x 250 mm

For fixing thin and flexible substrates

LIQUID DELIVERY

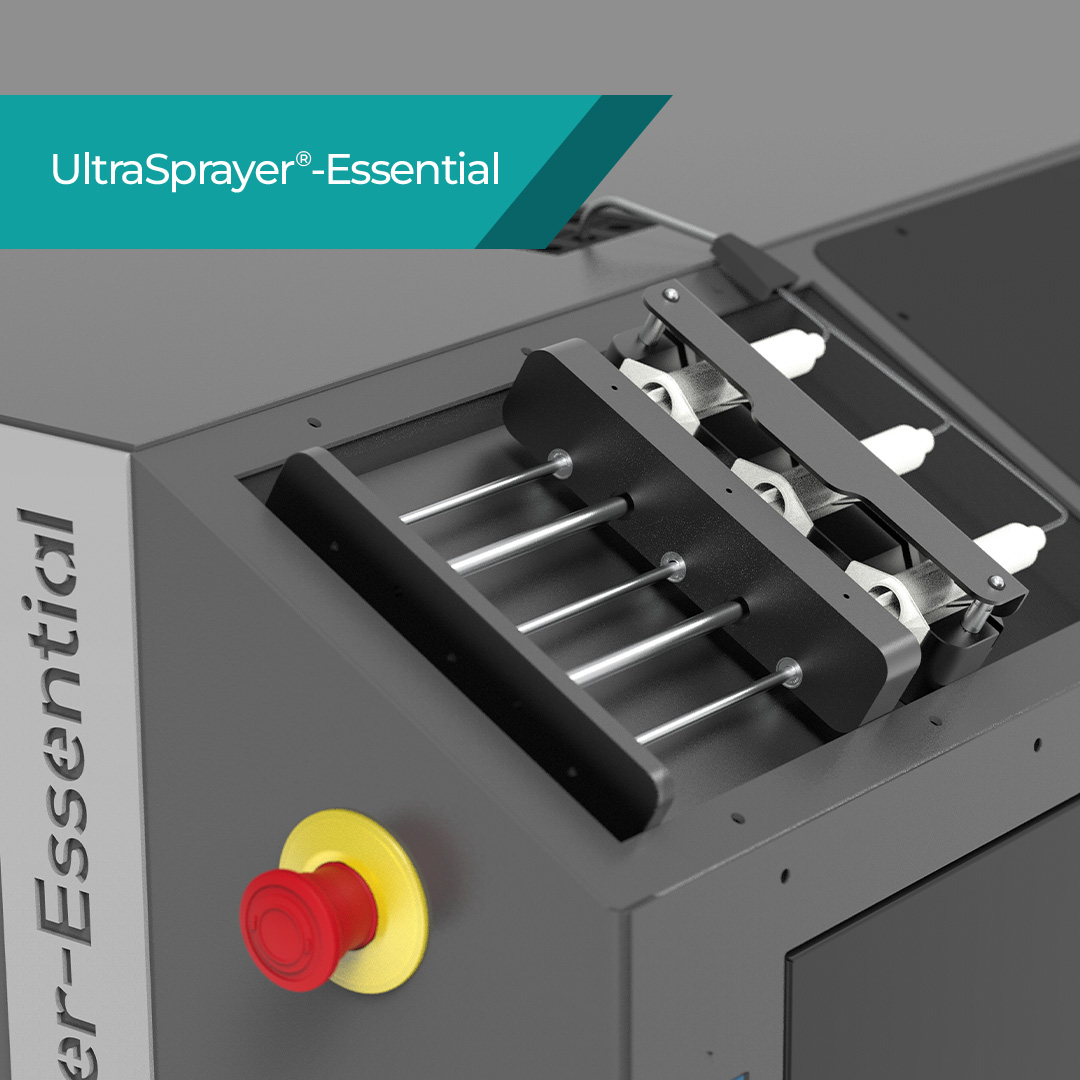

IdaFlow® Syringe Pump

Triple syringe pump for high volume solutions, suitable for up to 60 ml syringes of different types and volumes

PCB controlled adjustable flow rate in the range of 0.5 – 20 ml/min

LIQUID DELIVERY

(OPTIONAL)

IdaFlow® MicroSyringe Pump

Z-axis integrated microsyringe pump for low volume solutions with minimal solution loss

Single microsyringe pump suitable for syringes of different types and volumes (<10ml)

PCB controlled adjustable flow rate between 5µl/min – 5ml/min

CHAMBER SPESIFICATIONS

LED lighting

Humidity & Temperature sensor

GENERAL DIMENSION

Outer dimension:850 mmx900 mmx750mm



CERTIFICATIONCE, ISO 9001:2015
