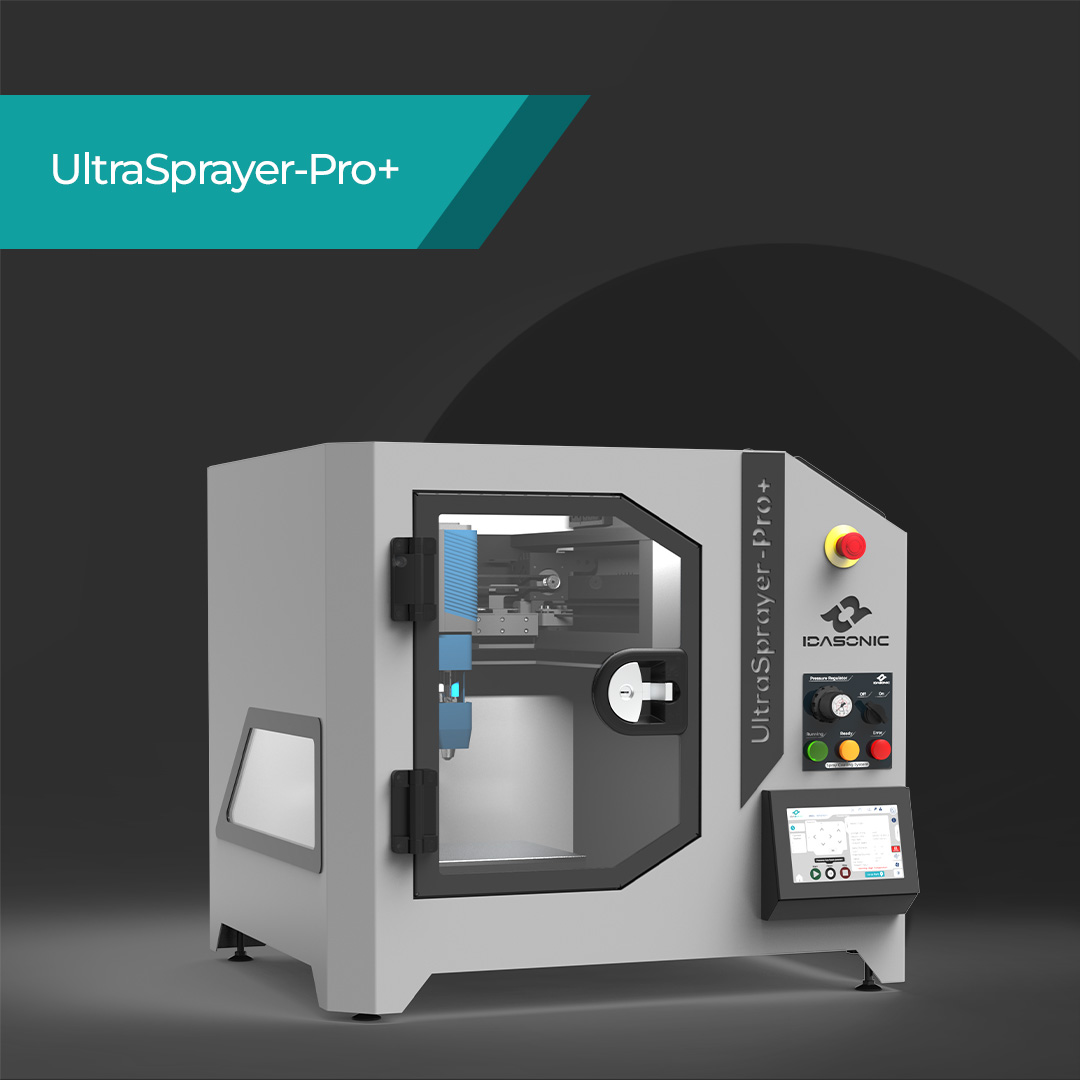

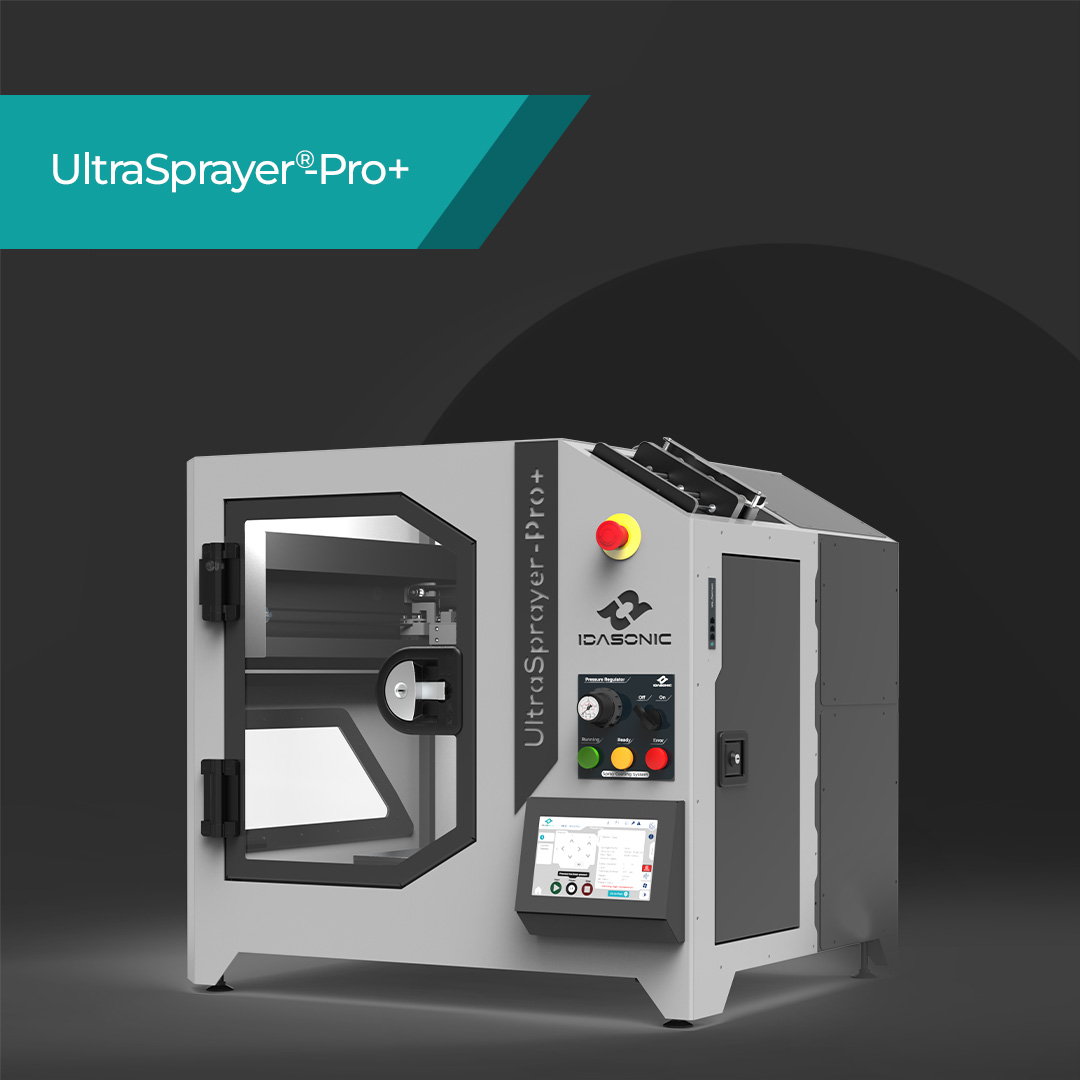

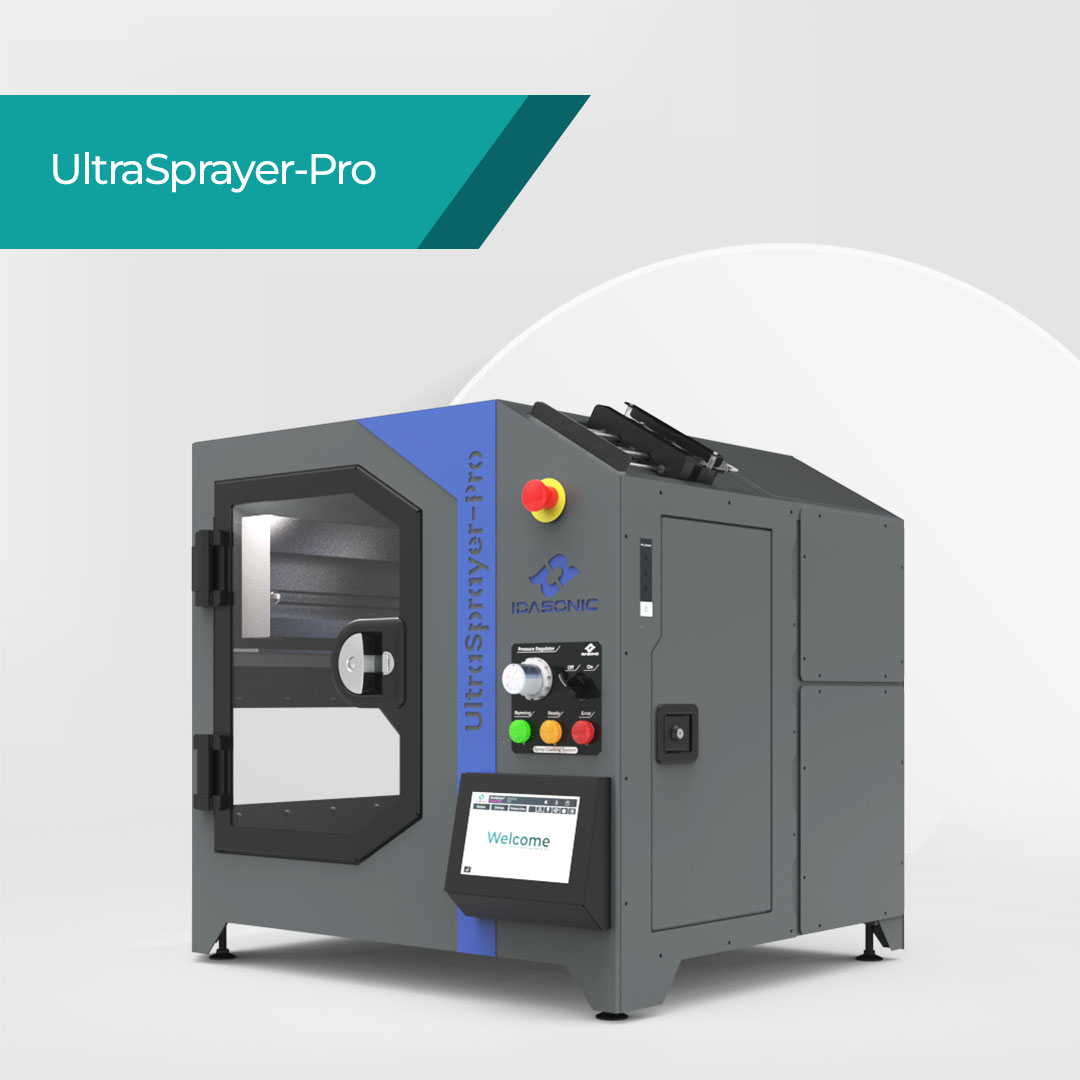

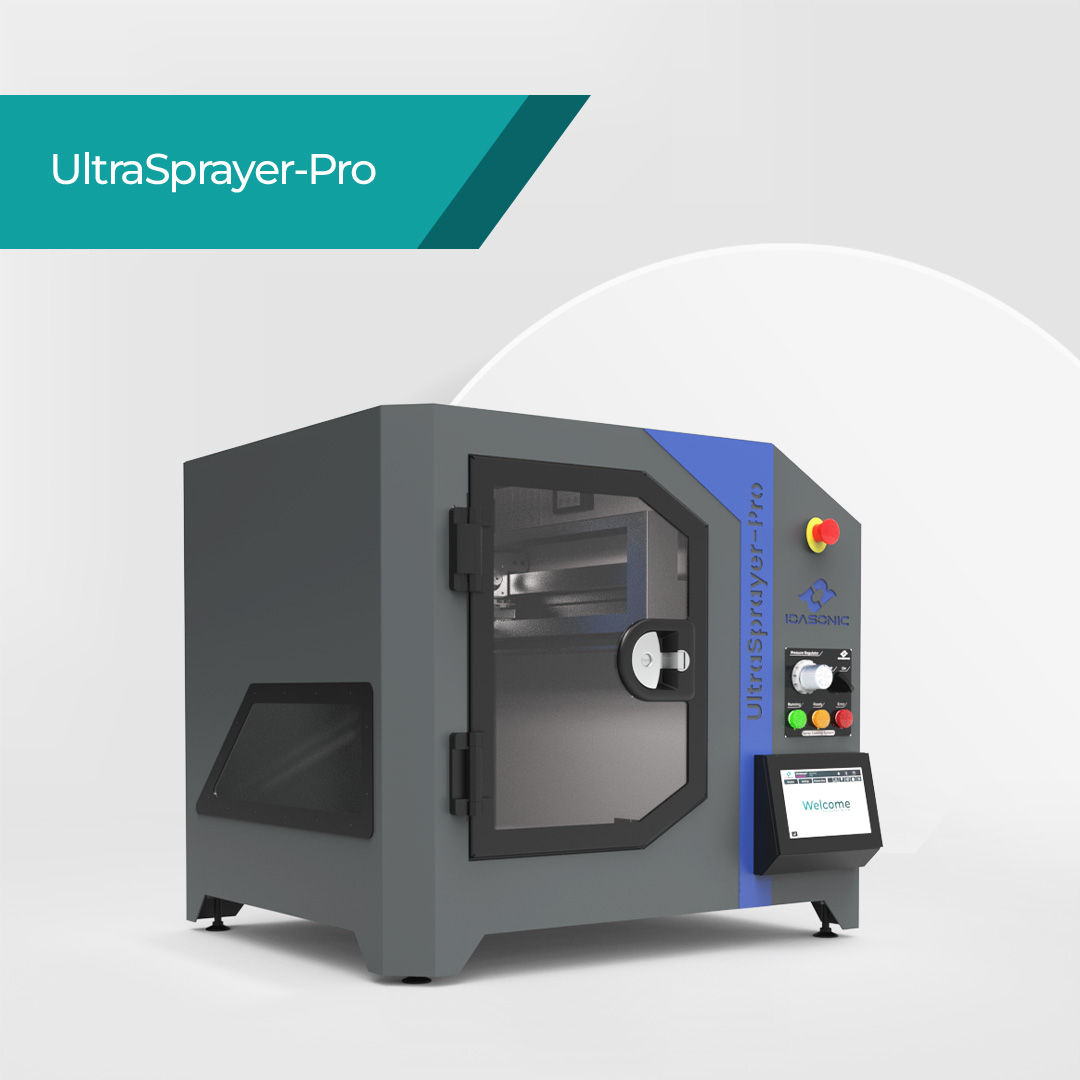

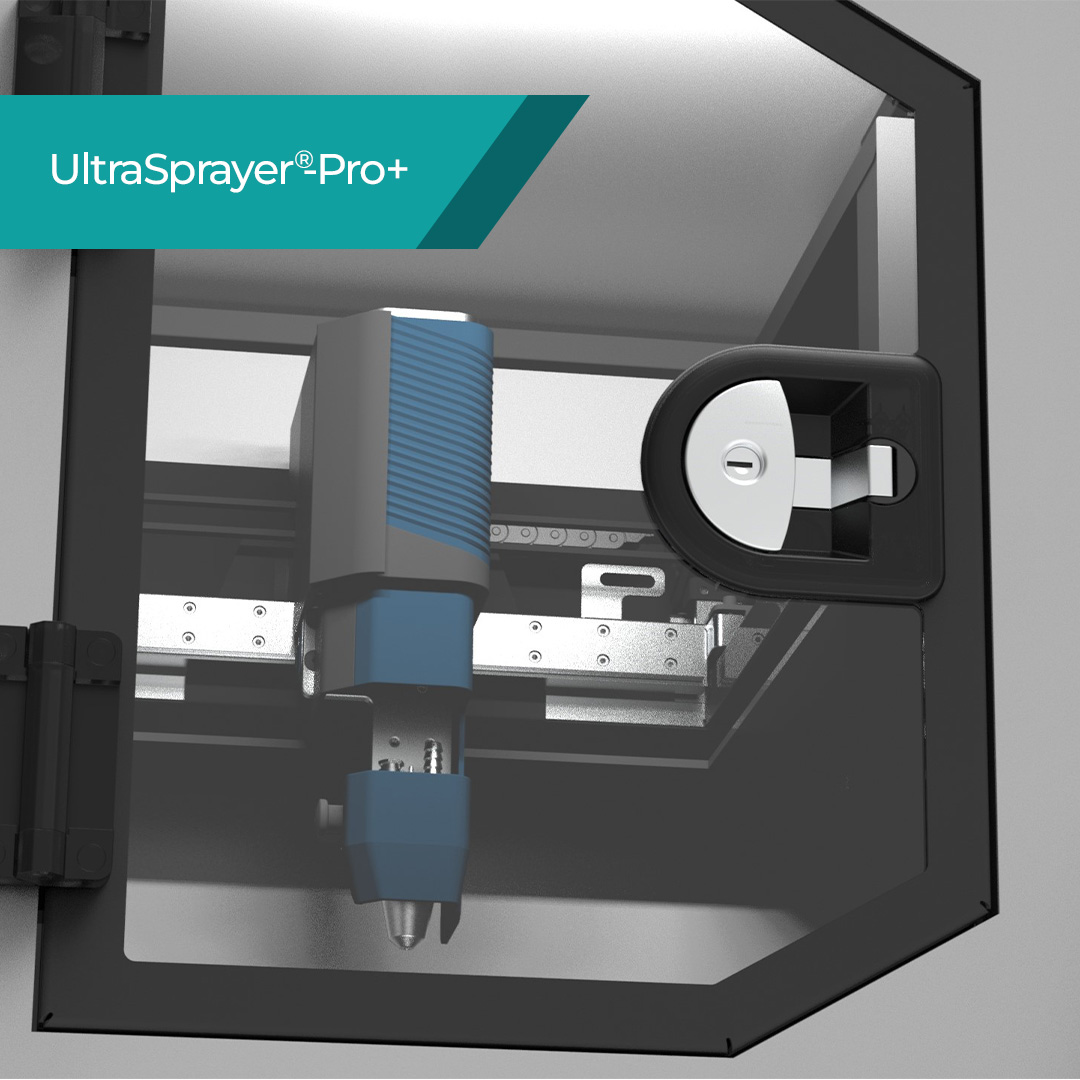

UltraSprayer®-Pro is an advanced ultrasonic spray coating system designed to deliver efficient results in research and development activities. This cutting-edge system supports a wide range of applications, including solar cells, fuel cells, optoelectronic devices, semiconductor thin film coating, flexible electronic devices, textiles, medical, and defense industries.
Equipped with specialized components, UltraSprayer®-Pro offers unmatched precision and control. It includes:

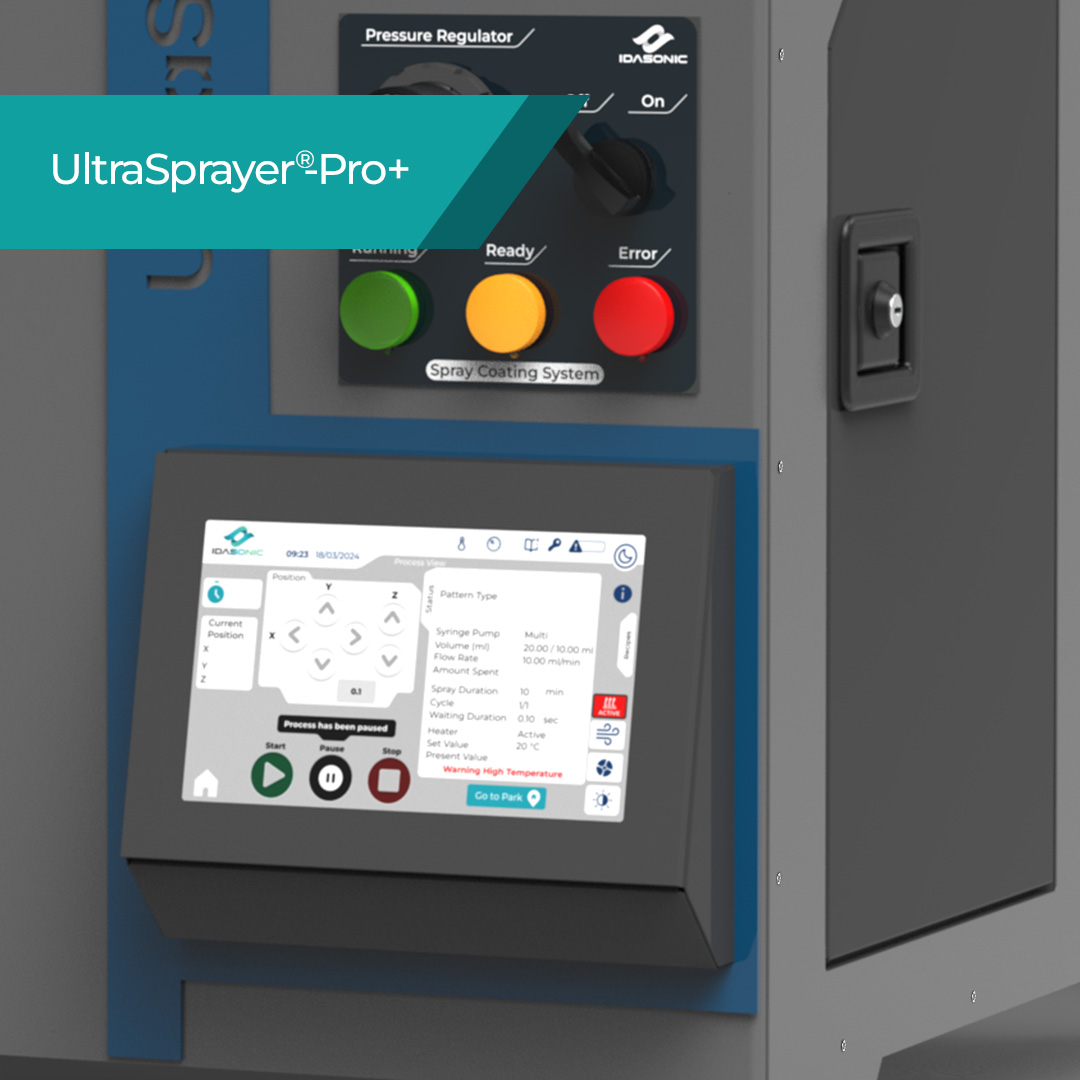

These features optimize thin film coating processes and provide maximum flexibility to users. Moreover, its user-friendly touchscreen interface allows seamless and precise operation, making it ideal for laboratory environments.
UltraSprayer®-Pro is compatible with various modular coating options, such as:
This versatility allows researchers to tailor the system to specific application needs, ensuring excellent results across diverse industries.
For those striving for innovation and research excellence, UltraSprayer®-Pro is the ultimate solution. With its advanced features and flexible options, it serves as a reliable tool for achieving consistent results. Contact us today to learn more about UltraSprayer®-Pro and explore how our specialized nanocoating solutions can benefit your projects!
Therefore, we invite you to contact us today to learn more about UltraSprayer®-Pro Explore how our specialized nanocoating solutions can elevate your projects!
Learn more about ultrasonic spray coating systems here.
Technical Specifications
| CONTROL UNIT | Embedded control unit Touchscreen with user-friendly interface 3x IdaConnect® Interface |
| NOZZLE MOTION | XY scanning area 300mmx300m Z-height, 50-200 mm Nozzle travel speed up to 1500 mm/s Nozzle travel acceleration 500 mm/s² Laser support for easy positioning IP54 Environmental protection Aluminum mechanism for rust protection |

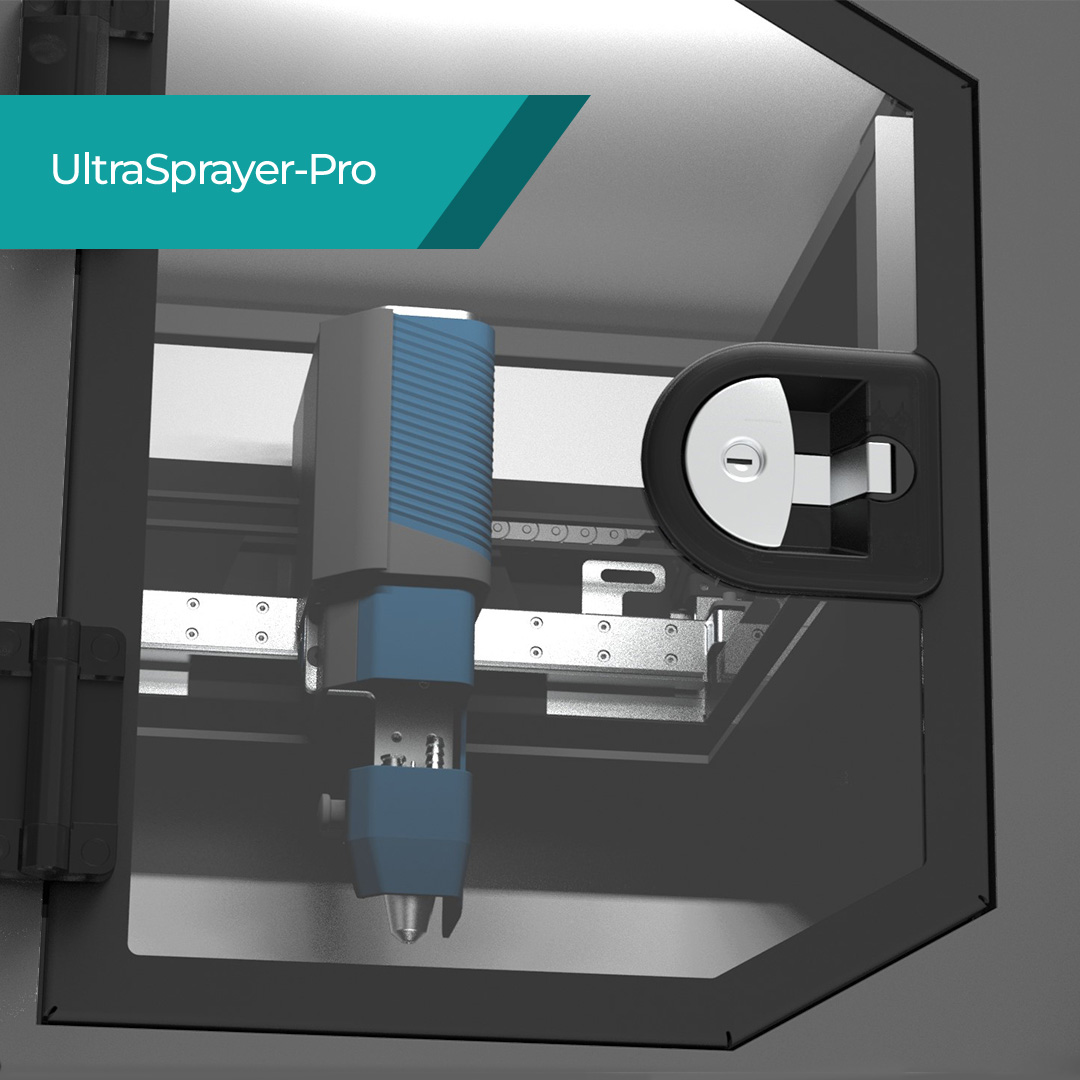

| ULTRASONIC SPRAY NOZZLE | IdaMist® Ultrasonic Atomizer Operating frequency 100 kHz (options are available.) Output power 8 W Average droplet size ~20 µm |
| HEATING PLATE | Operating temperature: max 500°C Up to 250mmx250mm surface area Precise temperature control with K-type thermocouple Adjustable temperature rise rate |
| VACUUM PLATE (OPTIONAL) | 250 mm x 250 mm For fixing thin and flexible substrates |

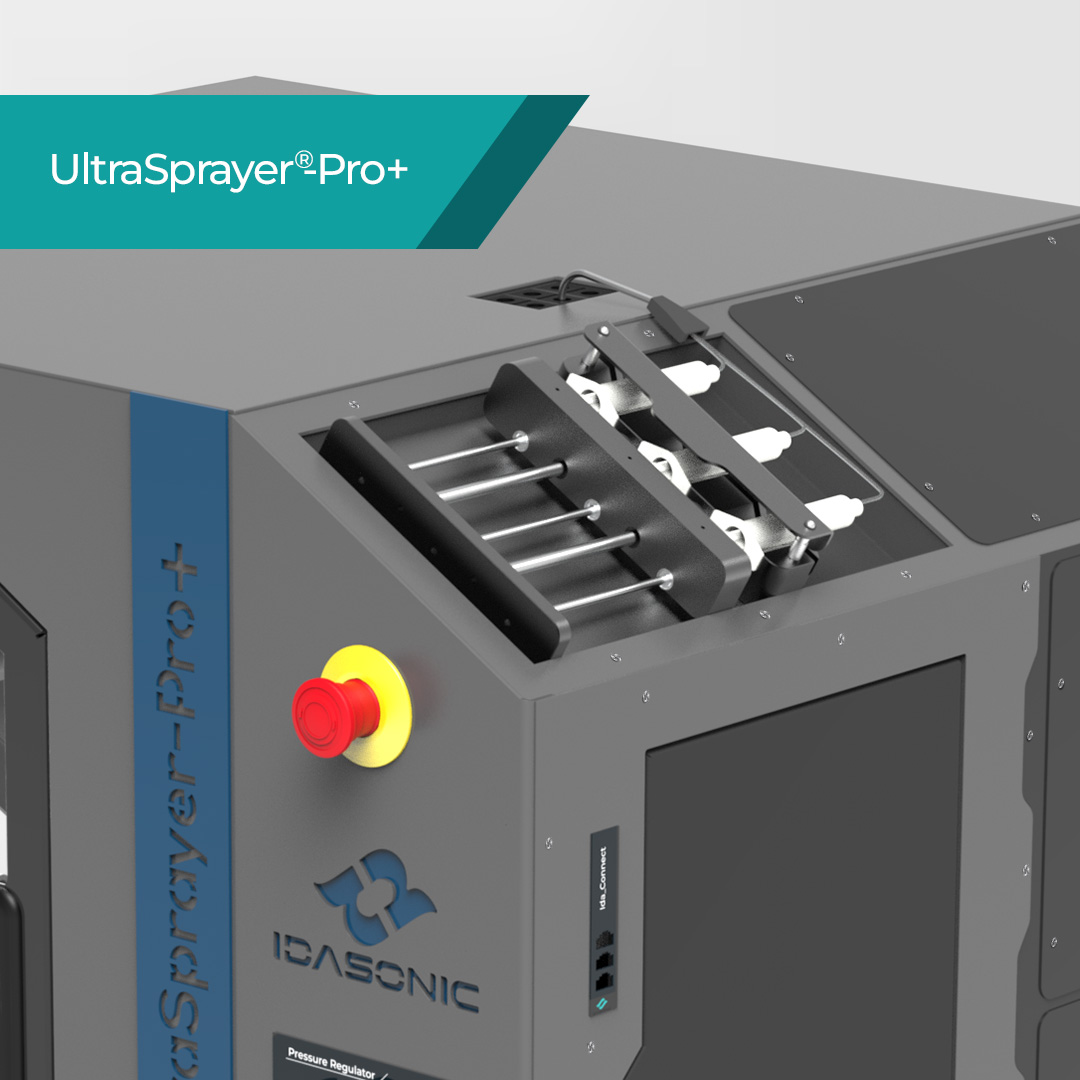

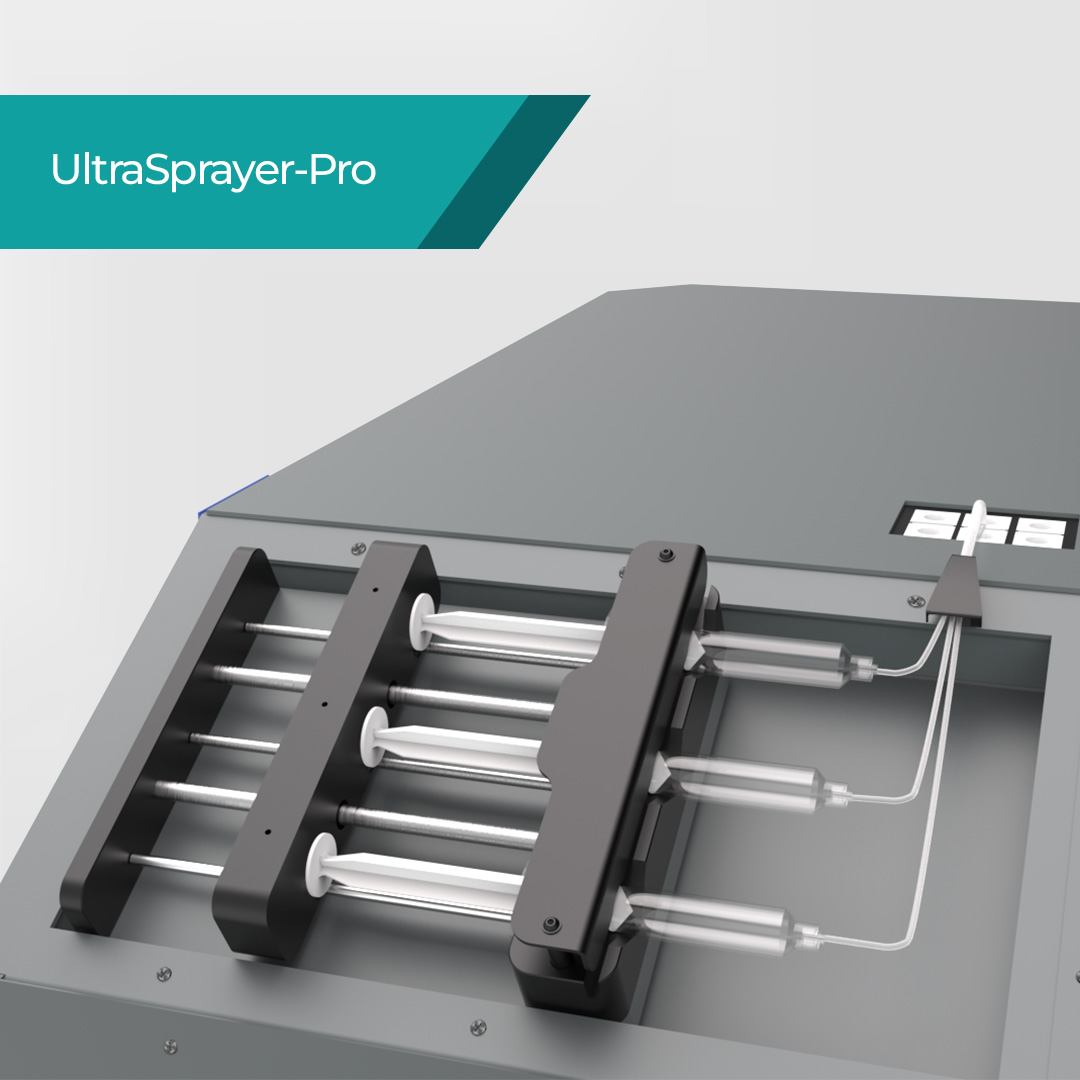

| LIQUID DELIVERY | IdaFlow® Syringe Pump Triple syringe pump for high volume solutions, suitable for up to 60 ml syringes of different types and volumes PCB controlled adjustable flow rate in the range of 0.5 – 20 ml/min |
LIQUID DELIVERY (OPTIONAL) | IdaFlow® MicroSyringe Pump Z-axis integrated microsyringe pump for low volume solutions with minimal solution loss Single microsyringe pump suitable for syringes of different types and volumes (<10ml) PCB controlled adjustable flow rate between 5µl/min – 5ml/min External Syringe Pumps can be connected by using IdaConnect® , syringe pumps of various volumes can be connected, and the External Syringe Pumps can be directly controlled via the embedded HMI screen. |
| CHAMBER SPESIFICATIONS | LED lighting Humidity & Temperature sensor to read the relative humidity& temperature in the chamber Modular power output compatible with a single 220V heating table with PID support. 1x power output and RJ45 connector compatible with modular coating options, such as rod coating, stent coating, and other modular IDASONIC® coating solutions. |
| GENERAL DIMENSION | Outer dimension: 950 mmx1000 mmx850mm |
| CERTIFICATION | CE, ISO 9001:2015 |
