UltraSprayer® -Med

Ultrasprayer®-Med is an ultrasonic spray coating device designed for the needs in the medical field. It is an ideal solution especially for coating implant devices such as stents, catheters and medical wires. By providing precise and homogeneous coating, the state-of-the-art Ultrasprayer®-Med increases the biocompatibility of medical devices and helps to improve patients’ health outcomes. It enables the homogeneous application of drugs, biomaterials or special coatings to the surface of stents, catheters and medical wires, optimizing their effect on these devices. Ultrasprayer®-Med provides healthcare professionals and medical device manufacturers with reliable, effective and high-quality coating solutions. With its innovative design and user-friendly interface, Ultrasprayer®-Med is an ideal option to meet coating needs in the medical industry. For more information about Ultrasprayer®-Med or to place an order, please feel free to contact us. Our team of experts is ready and eager to provide you with solutions tailored to your needs. Contact us now and discover the perfect nanocoating solutions for your medical devices!

Technical Specifications

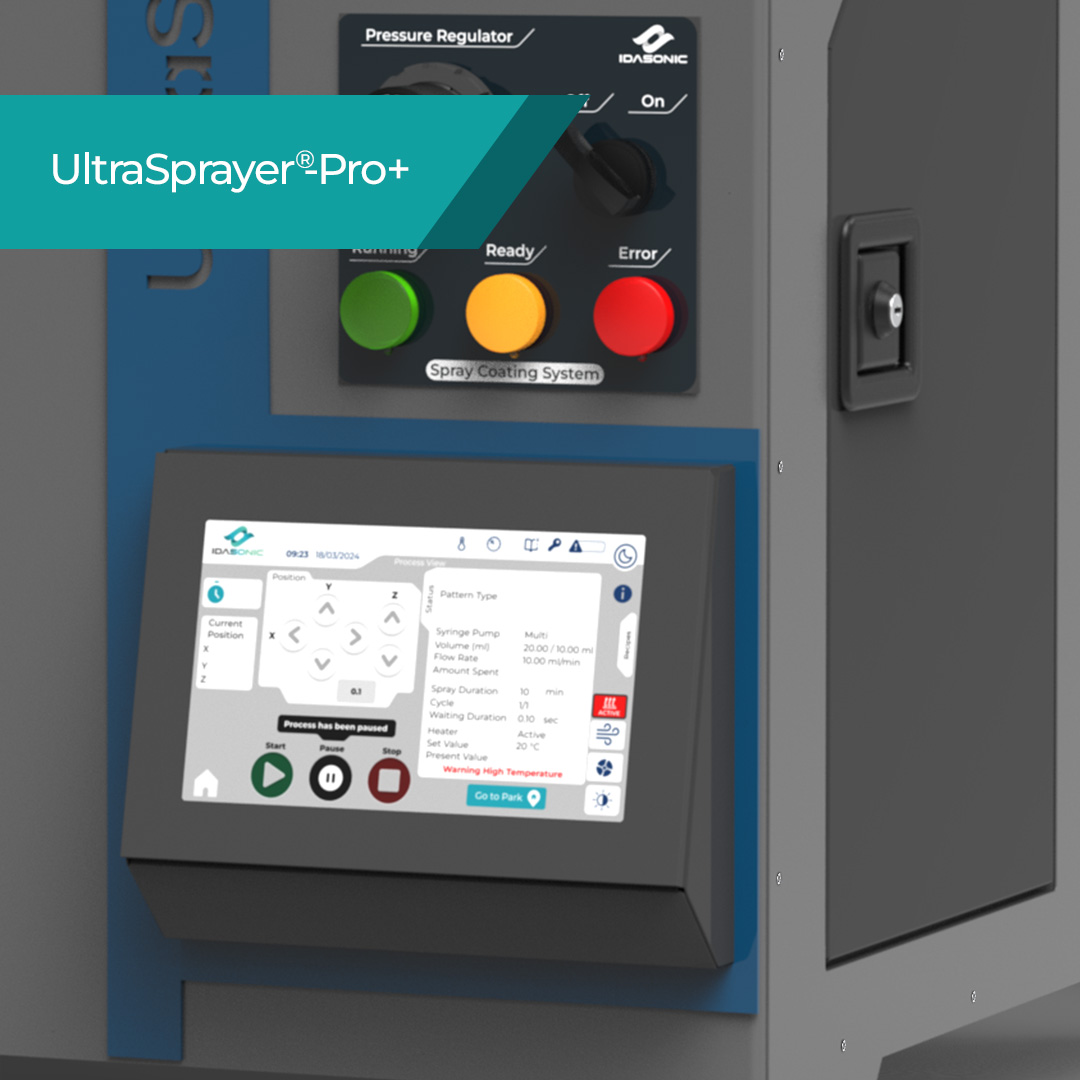

CONTROL UNIT

Embedded control unit

Touchscreen with user-friendly interface

3x IdaConnect® Interface

NOZZLE MOTION

XY scanning area 300mmx300m

Z-height, 50-200 mm

Nozzle travel speed up to 1500 mm/s

Nozzle travel acceleration 500 mm/s²

Laser support for easy positioning

IP54 Environmental protection Aluminum mechanism for rust protection

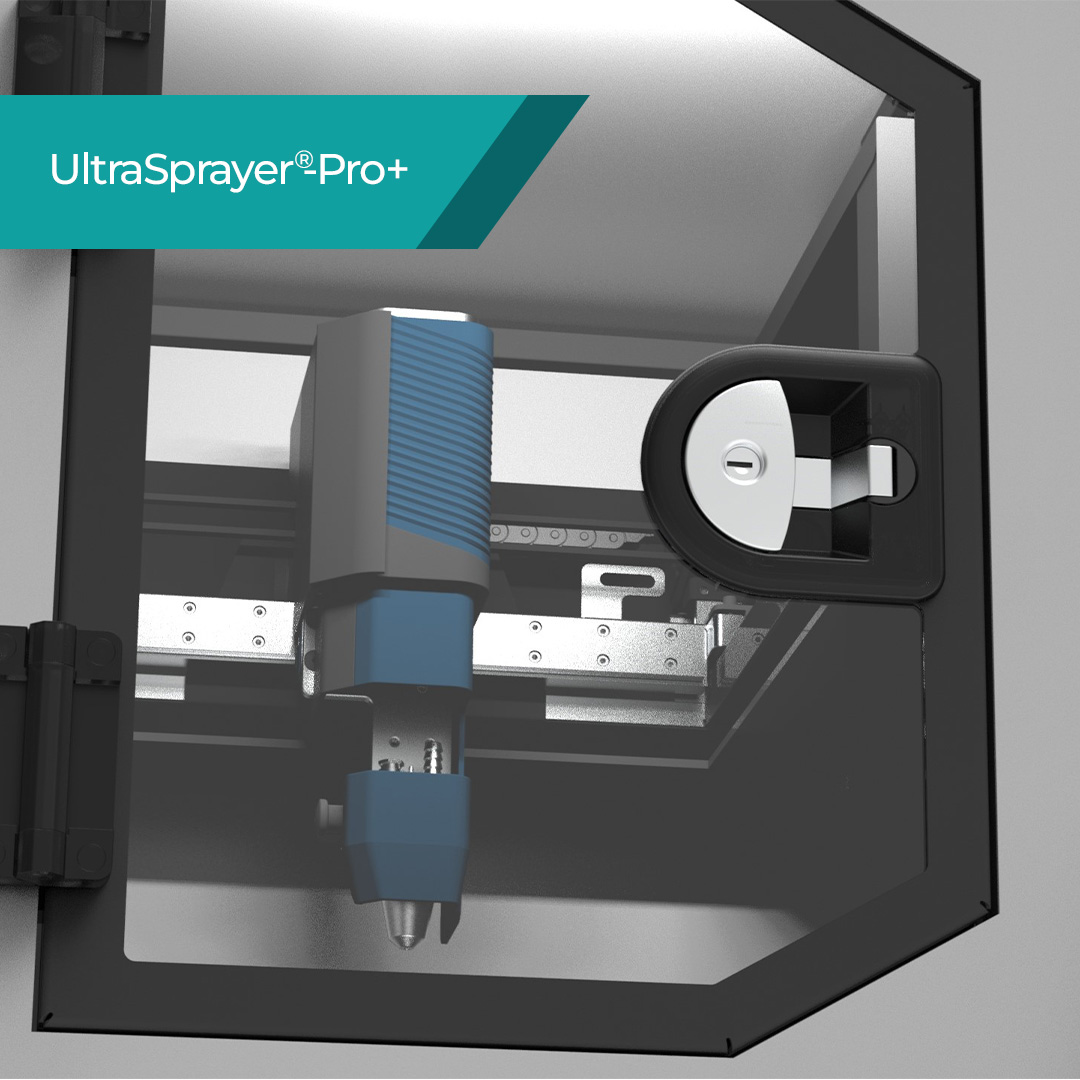

ULTRASONIC SPRAY NOZZLE

IdaMist® Ultrasonic Atomizer

Operating frequency 100 kHz (options are available.)

Output power 8 W

Average droplet size ~20 µm

SAMPLE HOLDER CONFIGURATION

Up to 300mmx300mm spraying surface area

Up to 300mm spraying length

modular coating options, such as rod coating, stent coating, balloon catheter and in blood-tube

LIQUID DELIVERY

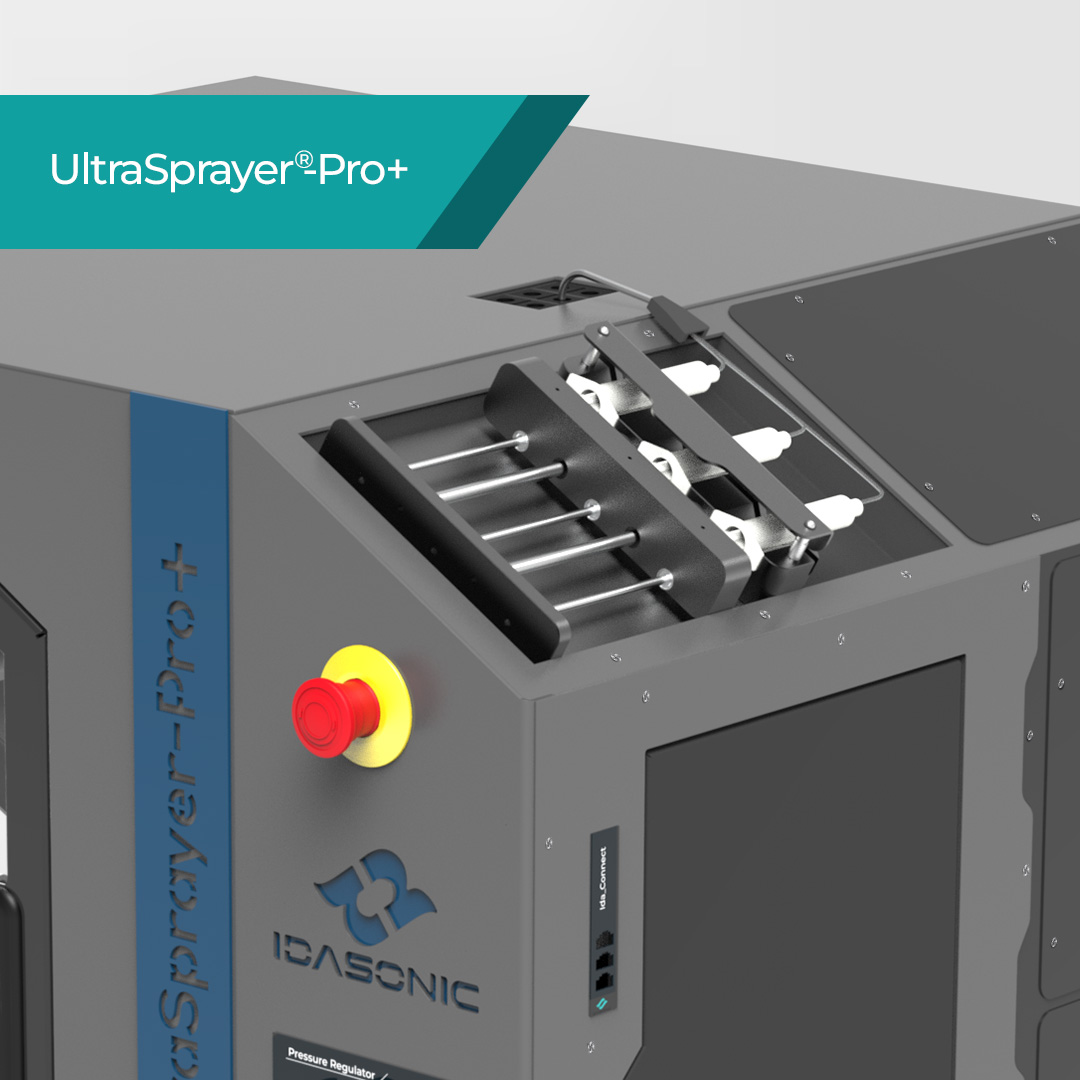

IdaFlow® Syringe Pump

Triple syringe pump for high volume solutions, suitable for up to 60 ml syringes of different types and volumes

PCB controlled adjustable flow rate in the range of 0.5 – 20 ml/min

LIQUID DELIVERY

(OPTIONAL)

IdaFlow® MicroSyringe Pump

Z-axis integrated microsyringe pump for low volume solutions with minimal solution loss

Single microsyringe pump suitable for syringes of different types and volumes (<10ml)

PCB controlled adjustable flow rate between 5µl/min – 5ml/min

External Syringe Pumps can be connected by using IdaConnect® , syringe pumps of various volumes can be connected, and the External Syringe Pumps can be directly controlled via the embedded HMI screen.

CHAMBER SPESIFICATIONS

LED lighting

Humidity & Temperature sensor to read the relative humidity& temperature in the chamber

Modular power output compatible with a single 220V heating table with PID support.

1x power output and RJ45 connector compatible with modular coating options

GENERAL DIMENSION

Outer dimension: 850 mmx900 mmx750mm





CERTIFICATIONCE, ISO 9001:2015
